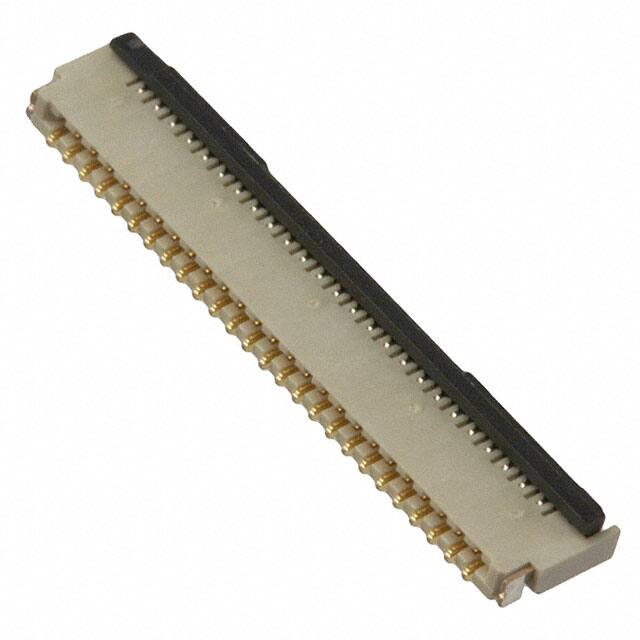

FH39-51S-0.3SHW(10)

Teknik Özellikler

Mixed Contacts

NO

Option

GENERAL PURPOSE

Contact Finish

Gold

Total Number Of Contacts

51

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Mil Conformance

NO

Montaj

Surface Mount

Kurşunsuz Kodu

yes

Ul Flammability Code

94V-0

Withdrawl Forcemin

ZIF N

Insulation Resistance

50MOhm

REACH Uyumluluk Kodu

unknown

Sıra Sayısı

1

Özellikler

Zero Insertion Force (ZIF)

Contact Materials

Phosphor Bronze

JESD-609 Kodu

e3

Actuatorcolor

Black

Pcb Contact Pattern

STAGGERED

Housing Color

Beige

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

120VAC V

Din Conformance

NO

Contact Gender

FEMALE

Contact Style

BELLOWED TYPE

Seri

FH39

Filter Feature

NO

Number Of Pcb Rows

2

Terminal

Solder

Locking Feature

Flip Lock, Backlock

Flammability Rating

UL94 V-0

Mating Cycles

10

Reference Standard

UL

Actuator Material

Polyamide (PA), Nylon

Pozisyon Sayısı

51

Montaj Tipi

Surface Mount, Right Angle

Material Flammability Rating

UL94 V-0

Ffc Fcb Thickness

0.20mm

Cable End Type

Tapered
