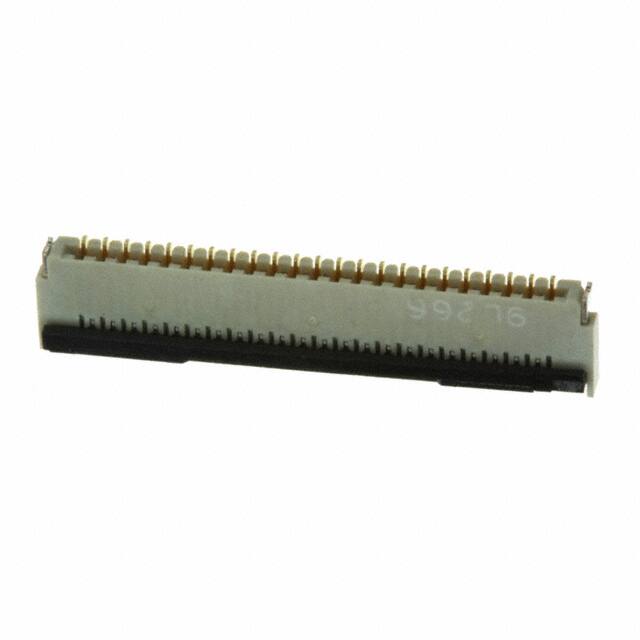

FH39-45S-0.3SHW(10)

Teknik Özellikler

Akım Değeri

200mA

Flat Flex Type

FPC

Pitch

0.012 0.30mm

Contact Pattern

STAGGERED

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

Housing Material

Liquid Crystal Polymer (LCP)

Çalışma Sıcaklığı

-55°C~85°C

Nominal Gerilim

30V

Parça Durumu

Active

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

Height Above Board

0.044 1.12mm

Pozisyon Sayısı

45

Actuator Material

Polyamide (PA), Nylon

Mating Cycles

10

Reference Standard

UL

Locking Feature

Flip Lock, Backlock

Flammability Rating

UL94 V-0

Terminal

Solder

Filter Feature

NO

Number Of Pcb Rows

2

Additional Feature

LOW PROFILE

Contact Finish Thickness

19.7μin 0.50μm

Current Rating Amps

0.2A

Cable End Type

Tapered

Ffc Fcb Thickness

0.20mm

Material Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Actuatorcolor

Black

JESD-609 Kodu

e3

Contact Materials

Phosphor Bronze

Özellikler

Zero Insertion Force (ZIF)

Sıra Sayısı

1

Seri

FH39

Contact Style

BELLOWED TYPE

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Housing Color

Beige
