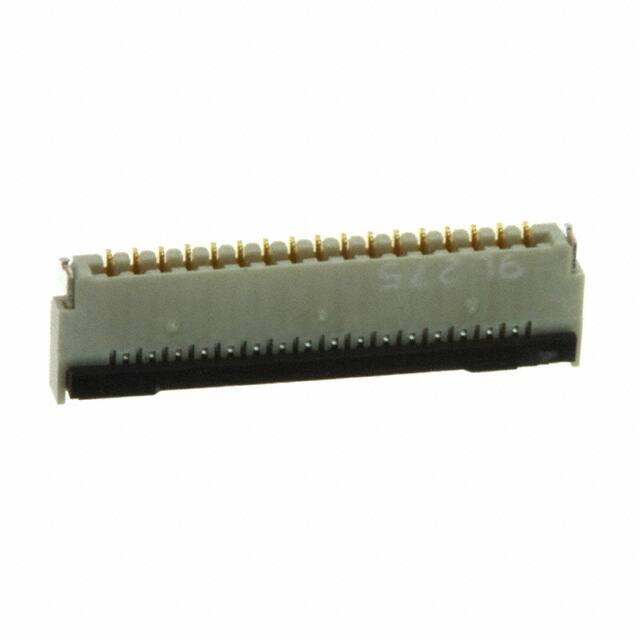

FH39-33S-0.3SHW(10)

Teknik Özellikler

Akım Değeri

200mA

Flat Flex Type

FPC

Contact Pattern

STAGGERED

Pitch

0.012 0.30mm

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

Housing Material

Liquid Crystal Polymer (LCP)

Nominal Gerilim

30V

Çalışma Sıcaklığı

-55°C~85°C

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Height Above Board

0.044 1.12mm

Pozisyon Sayısı

33

Actuator Material

Polyamide (PA), Nylon

Reference Standard

UL

Mating Cycles

10

Flammability Rating

UL94 V-0

Locking Feature

Flip Lock, Backlock

Number Of Pcb Rows

2

Filter Feature

NO

Terminal

Solder

ECCN Kodu

EAR99

Additional Feature

LOW PROFILE

Contact Finish Thickness

19.7μin 0.50μm

Current Rating Amps

0.2A

Ffc Fcb Thickness

0.20mm

Cable End Type

Tapered

Material Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Actuatorcolor

Black

JESD-609 Kodu

e3

Contact Materials

Phosphor Bronze

Özellikler

Zero Insertion Force (ZIF)

Sıra Sayısı

1

Seri

FH39

Contact Style

BELLOWED TYPE

Contact Gender

FEMALE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Dielectric Withstanding Voltage

120VAC V
