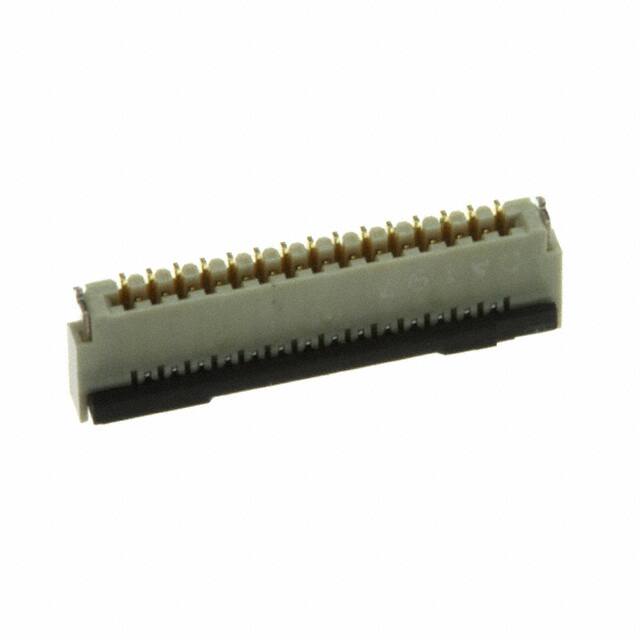

FH39-29S-0.3SHW(10)

Teknik Özellikler

Actuator Material

Polyamide (PA), Nylon

Pozisyon Sayısı

29

Terminal

Solder

Number Of Pcb Rows

2

Filter Feature

NO

Flammability Rating

UL94 V-0

Locking Feature

Flip Lock, Backlock

Mating Cycles

10

Reference Standard

UL

Cable End Type

Tapered

Ffc Fcb Thickness

0.20mm

Contact Finish Thickness

19.7μin 0.50μm

Current Rating Amps

0.2A

Additional Feature

LOW PROFILE

Montaj Tipi

Surface Mount, Right Angle

Material Flammability Rating

UL94 V-0

Insertion Forcemax

ZIF N

Contact Pattern

STAGGERED

Pitch

0.012 0.30mm

Flat Flex Type

FPC

Akım Değeri

200mA

Housing Material

Liquid Crystal Polymer (LCP)

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Nominal Gerilim

30V

Çalışma Sıcaklığı

-55°C~85°C

Height Above Board

0.044 1.12mm

Ambalaj

Tape & Reel (TR)

Option

GENERAL PURPOSE

Contact Finish

Gold

Reach Svhc

Unknown

Mixed Contacts

NO

Gender

Receptacle

Ul Flammability Code

94V-0

Withdrawl Forcemin

ZIF N

Insulation Resistance

50MOhm

Mil Conformance

NO

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

29
