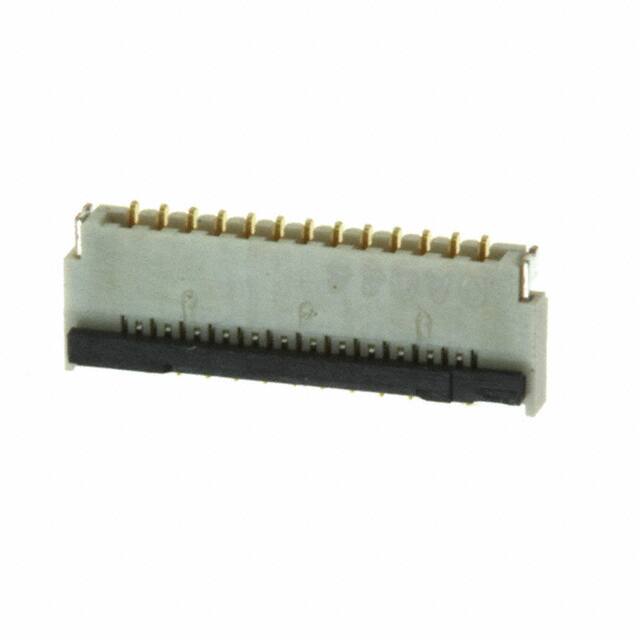

FH39-25S-0.3SHW(10)

Teknik Özellikler

Montaj

Surface Mount

Kurşunsuz Kodu

yes

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

25

Mil Conformance

NO

Insulation Resistance

500MOhm

Withdrawl Forcemin

ZIF N

Ul Flammability Code

94V-0

Gender

Receptacle

Mixed Contacts

NO

Reach Svhc

Unknown

Contact Finish

Gold

Option

GENERAL PURPOSE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Pcb Contact Pattern

STAGGERED

Housing Color

Beige

Reliability

COMMERCIAL

Seri

FH39

Contact Style

BELLOWED TYPE

Sıra Sayısı

1

Actuatorcolor

Black

JESD-609 Kodu

e3

Contact Materials

Phosphor Bronze

Özellikler

Zero Insertion Force (ZIF)

Material Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Additional Feature

LOW PROFILE

Current Rating Amps

0.2A

Contact Finish Thickness

19.7μin 0.50μm

Ffc Fcb Thickness

0.20mm

Cable End Type

Tapered

Reference Standard

UL

Mating Cycles

10

Flammability Rating

UL94 V-0

Locking Feature

Flip Lock, Backlock

Filter Feature

NO

Number Of Pcb Rows

2

Terminal

Solder
