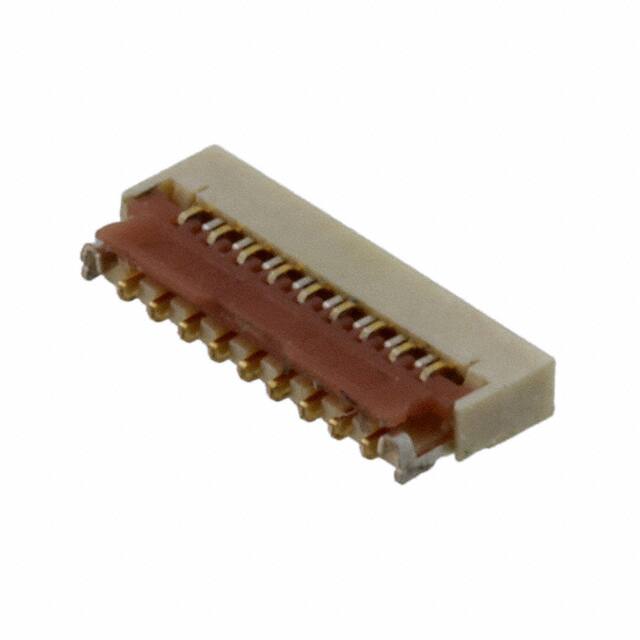

FH36W-17S-0.3SHW(99)

Teknik Özellikler

HTS Kodu

8536.69.40.40

Gender

Female

Çalışma Sıcaklığı

-55°C~85°C

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

17

Current Rating Amps

0.2A

Pcb Contact Pattern

STAGGERED

Nominal Gerilim

30V

Pcb Contact Row Spacing

2.3622 mm

Pitch

0.012 0.30mm

Contact Materials

Phosphor Bronze

Insulation Resistance

50000000Ohm

Flammability Rating

UL94 HB

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

120VAC V

Reference Standard

UL

Actuator Material

Polyamide (PA), Nylon

Number Of Pcb Rows

2

Ffc Fcb Thickness

0.20mm

Özellikler

Zero Insertion Force (ZIF)

Terminal

Solder

Montaj Tipi

Surface Mount, Right Angle

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

Akım Değeri

200mA

Contact Finish

Gold

ECCN Kodu

EAR99

Flat Flex Type

FPC

Actuatorcolor

Brown

Body Length Or Diameter

0.264 inch

Body Breadth

0.039 inch

Mating Cycles

10

REACH Uyumluluk Kodu

unknown

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Locking Feature

Flip Lock

Contact Style

BELLOWED TYPE

Material Flammability Rating

UL94 HB

Reliability

COMMERCIAL
