Adet bazlı fiyat
- 1+ adet$3.20
- 10+ adet$3.02
- 100+ adet$2.85
- 500+ adet$2.69
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

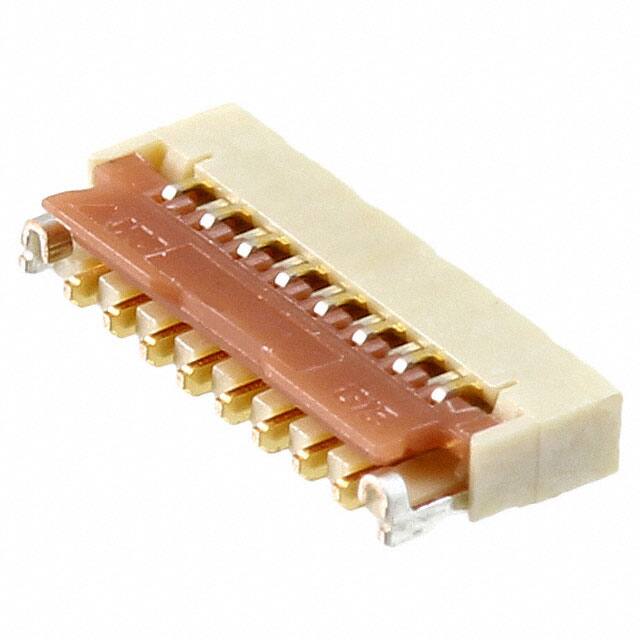

Teknik Özellikler
- Height Above Board
- 0.039 1.00mm
- Seri
- FH36
- Cable End Type
- Tabbed
- Ambalaj
- Digi-Reel®
- Montaj
- Surface Mount
- Total Number Of Contacts
- 15
- Parça Durumu
- Active
- Housing Color
- Beige
- Material Flammability Rating
- UL94 HB
- Reliability
- COMMERCIAL
- Contact Style
- BELLOWED TYPE
- Locking Feature
- Flip Lock
- Sıra Sayısı
- 1
- Contact Pattern
- RECTANGULAR
- REACH Uyumluluk Kodu
- unknown
- Body Breadth
- 0.039 inch
- Mating Cycles
- 10
- Body Length Or Diameter
- 0.24 inch
- Actuatorcolor
- Brown
- Flat Flex Type
- FPC
- Akım Değeri
- 200mA
- Contact Finish
- Gold
- RoHS Durumu
- RoHS Compliant
- Insertion Forcemax
- ZIF N
- Montaj Tipi
- Surface Mount, Right Angle
- Terminal
- Solder
- Özellikler
- Zero Insertion Force (ZIF)
- Ffc Fcb Thickness
- 0.20mm
- Number Of Pcb Rows
- 2
- Actuator Material
- Polyamide (PA), Nylon
- Reference Standard
- UL
- Dielectric Withstanding Voltage
- 120VAC V
- Housing Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Flammability Rating
- UL94 HB
- Insulation Resistance
- 50000000Ohm
- Contact Materials
- Phosphor Bronze
- Nominal Gerilim
- 30V
- Pitch
- 0.012 0.30mm
- Pcb Contact Row Spacing
- 2.3622 mm
