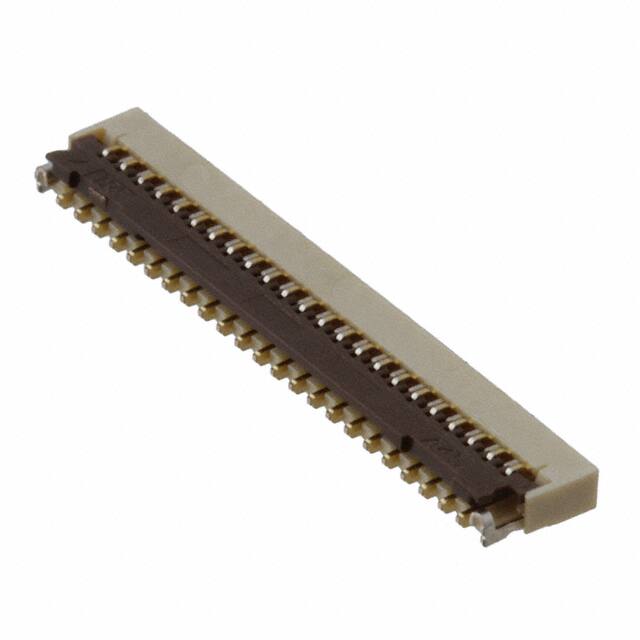

FH36-45S-0.3SHW(50)

Teknik Özellikler

Locking Feature

Flip Lock

Parça Durumu

Active

Total Number Of Contacts

45

Cable End Type

Tabbed

Reference Standard

UL

Terminal

Solder

Actuatorcolor

Brown

Flat Flex Type

FPC

Contact Gender

FEMALE

Akım Değeri

200mA

RoHS Durumu

RoHS Compliant

Filter Feature

NO

Mating Cycles

10

Mixed Contacts

NO

Insulation Resistance

50MOhm

Contact Materials

Phosphor Bronze

Pitch

0.012 0.30mm

Option

GENERAL PURPOSE

Mil Conformance

NO

Housing Material

Liquid Crystal Polymer (LCP)

HTS Kodu

8536.69.40.51

Contact Finish Thickness

19.7μin 0.50μm

Pozisyon Sayısı

45

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~85°C

Pcb Contact Pattern

STAGGERED

Din Conformance

NO

Current Rating Amps

0.2A

Contact Style

CENTRONIC

Housing Color

Beige

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Montaj

Surface Mount

Seri

FH36

Height Above Board

0.039 1.00mm

Ambalaj

Tape & Reel (TR)

Number Of Pcb Rows

2

Actuator Material

Polyamide (PA), Nylon

Ul Flammability Code

94V-0

Özellikler

Zero Insertion Force (ZIF)
