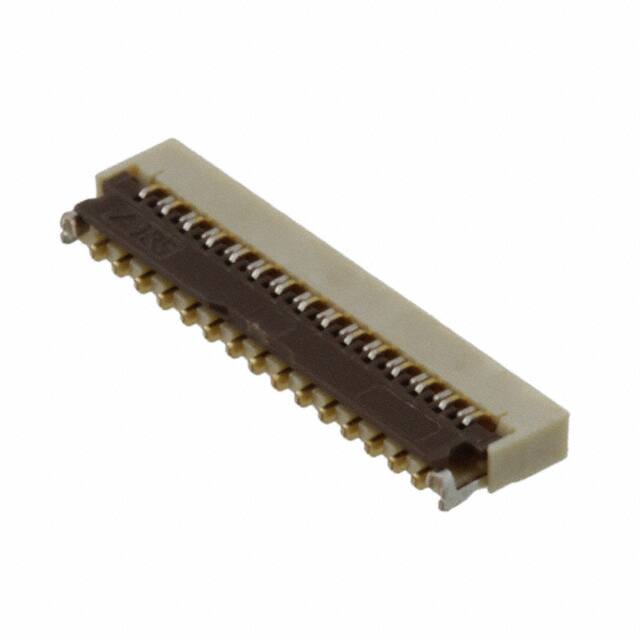

FH36-29S-0.3SHW(99)

Teknik Özellikler

Contact Style

BELLOWED TYPE

Locking Feature

Flip Lock

Housing Color

Beige

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Total Number Of Contacts

29

Montaj

Surface Mount

Cable End Type

Tabbed

Ambalaj

Cut Tape (CT)

Height Above Board

0.039 1.00mm

Seri

FH36

Reference Standard

UL

Number Of Pcb Rows

2

Actuator Material

Polyamide (PA), Nylon

Ffc Fcb Thickness

0.20mm

Terminal

Solder

Özellikler

Zero Insertion Force (ZIF)

Akım Değeri

200mA

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

Body Length Or Diameter

0.406 inch

Actuatorcolor

Brown

Flat Flex Type

FPC

Body Breadth

0.039 inch

Mating Cycles

10

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

REACH Uyumluluk Kodu

unknown

Insulation Resistance

50000000Ohm

Contact Materials

Phosphor Bronze

Nominal Gerilim

30V

Pitch

0.012 0.30mm

Pcb Contact Row Spacing

2.3622 mm

Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Liquid Crystal Polymer (LCP)

Dielectric Withstanding Voltage

120VAC V
