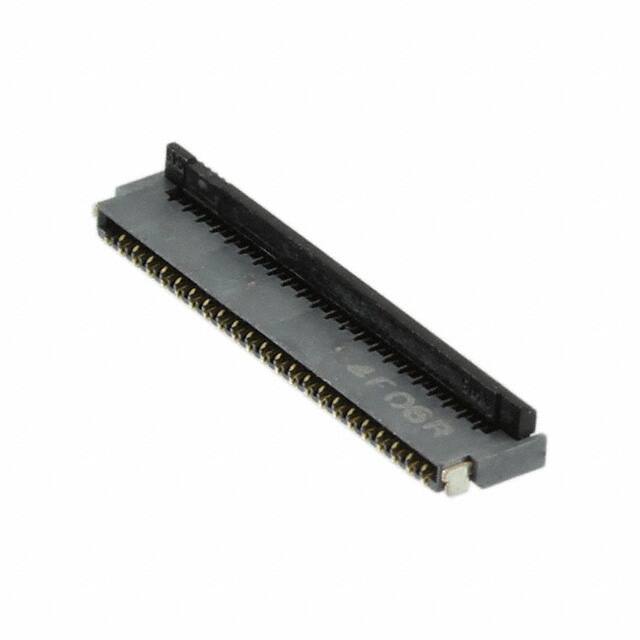

FH35C-45S-0.3SHW(50)

Teknik Özellikler

Terminal

Solder

Ffc Fcb Thickness

0.20mm

Contact Location

Dual

Number Of Pcb Rows

2

Actuator Material

Polyamide (PA), Nylon

Sıra Sayısı

1

Contact Pattern

STAGGERED

Voltage Rated Ac

30V

Body Breadth

0.035 inch

Mating Cycles

10

Actuatorcolor

Black

Body Length Or Diameter

0.594 inch

Flat Flex Type

FPC

Contact Finish

Gold

Akım Değeri

200mA

RoHS Durumu

RoHS Compliant

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Housing Color

Gray

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Contact Style

BELLOWED TYPE

Locking Feature

Flip Lock, Backlock

Seri

FH35C

Height Above Board

0.035 0.88mm

Ambalaj

Tape & Reel (TR)

Cable End Type

Tapered

Montaj

Surface Mount

Reach Svhc

Unknown

Total Number Of Contacts

45

Pozisyon Sayısı

45

Çalışma Sıcaklığı

-55°C~85°C

Gender

Receptacle

Contact Finish Thickness

11.8μin 0.30μm

Pcb Contact Pattern

STAGGERED

Current Rating Amps

0.2A

Flammability Rating

UL94 V-0

Insulation Resistance

50MOhm

Contact Materials

Phosphor Bronze

Pitch

0.012 0.30mm
