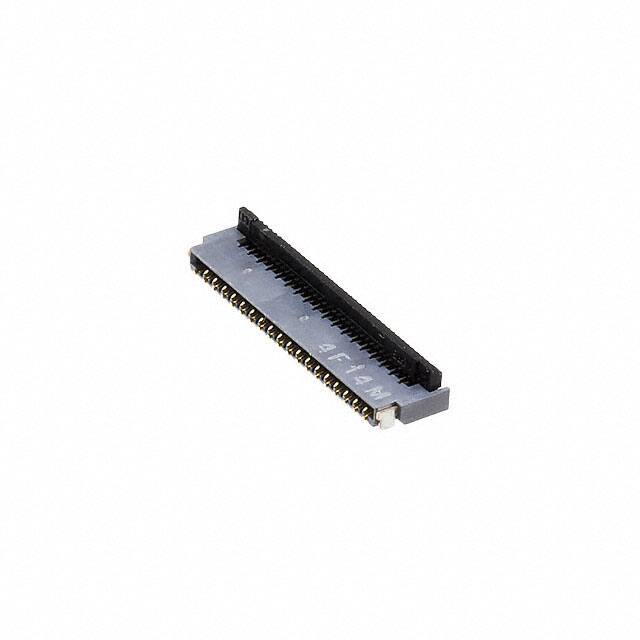

FH35C-37S-0.3SHW(99)

Teknik Özellikler

Pcb Contact Pattern

STAGGERED

Current Rating Amps

0.2A

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

37

Çalışma Sıcaklığı

-55°C~85°C

Contact Finish Thickness

1.18μin 0.030μm

Dielectric Withstanding Voltage

90VAC V

Housing Material

Liquid Crystal Polymer (LCP)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Insulation Resistance

50MOhm

Contact Materials

Phosphor Bronze

Pitch

0.012 0.30mm

Pcb Contact Row Spacing

2.8702 mm

Contact Pattern

STAGGERED

Sıra Sayısı

2

REACH Uyumluluk Kodu

unknown

Voltage Rated Ac

30V

Mating Cycles

10

Body Breadth

0.035 inch

Actuatorcolor

Black

Body Length Or Diameter

0.5 inch

Flat Flex Type

FPC

Akım Değeri

200mA

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

Terminal

Solder

Ffc Fcb Thickness

0.20mm

Contact Location

Dual

Number Of Pcb Rows

2

Actuator Material

Polyamide (PA), Nylon

Seri

FH35C

Height Above Board

0.035 0.88mm

Cable End Type

Tapered

Ambalaj

Cut Tape (CT)

Body Depth

0.132 inch

Montaj

Surface Mount

Total Number Of Contacts

37
