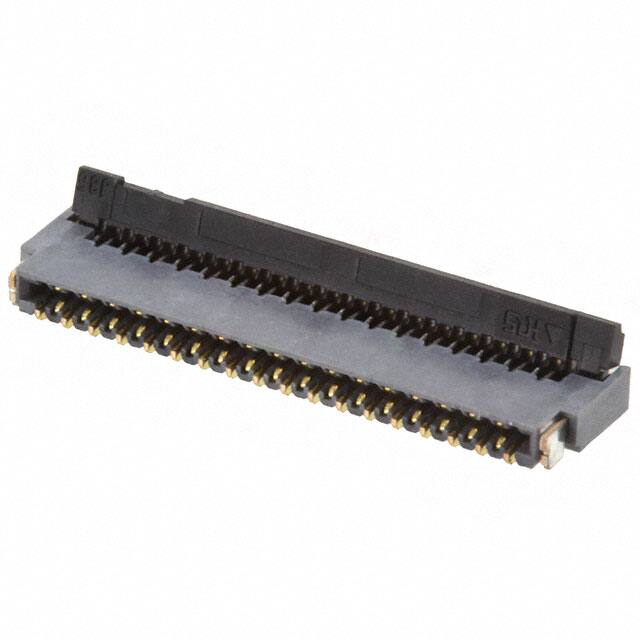

FH35C-35S-0.3SHW(99)

Teknik Özellikler

Pcb Contact Pattern

STAGGERED

Current Rating Amps

0.2A

Pozisyon Sayısı

35

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~85°C

Gender

Receptacle

Contact Finish Thickness

1.18μin 0.030μm

Dielectric Withstanding Voltage

90VAC V

Housing Material

Liquid Crystal Polymer (LCP)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Insulation Resistance

50MOhm

Contact Materials

Phosphor Bronze

Pcb Contact Row Spacing

2.8702 mm

Pitch

0.012 0.30mm

Sıra Sayısı

1

Contact Pattern

STAGGERED

Voltage Rated Ac

30V

Mating Cycles

10

Body Length Or Diameter

0.476 inch

Actuatorcolor

Black

Flat Flex Type

FPC

Contact Finish

Gold

Akım Değeri

200mA

RoHS Durumu

RoHS Compliant

Insertion Forcemax

ZIF N

Montaj Tipi

Surface Mount, Right Angle

Terminal

Solder

Ffc Fcb Thickness

0.20mm

Number Of Pcb Rows

2

Contact Location

Dual

Actuator Material

Polyamide (PA), Nylon

Height Above Board

0.035 0.88mm

Seri

FH35C

Cable End Type

Tapered

Ambalaj

Cut Tape (CT)

Reach Svhc

Unknown

Montaj

Surface Mount

Total Number Of Contacts

35

Parça Durumu

Active
