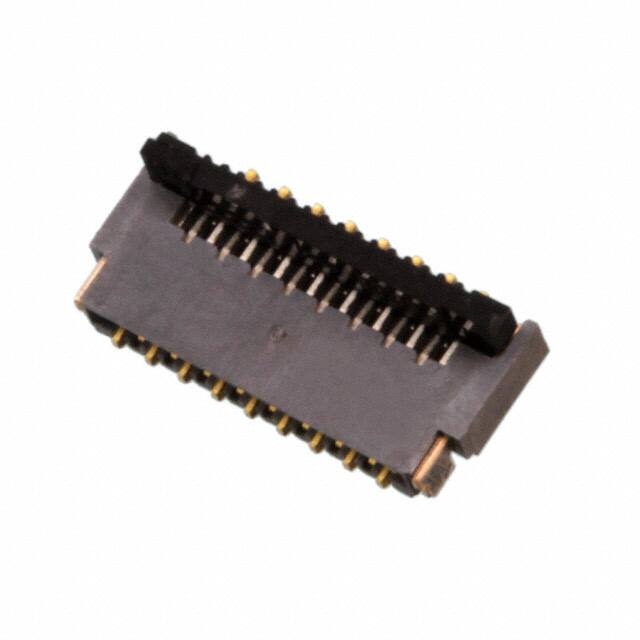

FH35C-17S-0.3SHW(50)

Teknik Özellikler

Dielectric Withstanding Voltage

90VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Liquid Crystal Polymer (LCP)

Flammability Rating

UL94 V-0

Insulation Resistance

50MOhm

Contact Materials

Phosphor Bronze

Pcb Contact Row Spacing

2.8702 mm

Pitch

0.012 0.30mm

Pcb Contact Pattern

STAGGERED

Current Rating Amps

0.2A

Pozisyon Sayısı

17

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~85°C

Contact Finish Thickness

11.8μin 0.30μm

Height Above Board

0.035 0.88mm

Seri

FH35C

Cable End Type

Tapered

Ambalaj

Tape & Reel (TR)

Body Depth

0.132 inch

Montaj

Surface Mount

Total Number Of Contacts

17

Parça Durumu

Active

Housing Color

Gray

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Contact Style

BELLOWED TYPE

Locking Feature

Flip Lock, Backlock

Contact Pattern

STAGGERED

Sıra Sayısı

2

REACH Uyumluluk Kodu

unknown

Voltage Rated Ac

30V

Body Breadth

0.035 inch

Mating Cycles

10

Body Length Or Diameter

0.264 inch

Actuatorcolor

Black

Flat Flex Type

FPC

Contact Finish

Gold

Akım Değeri

200mA

RoHS Durumu

RoHS Compliant

Insertion Forcemax

ZIF N
