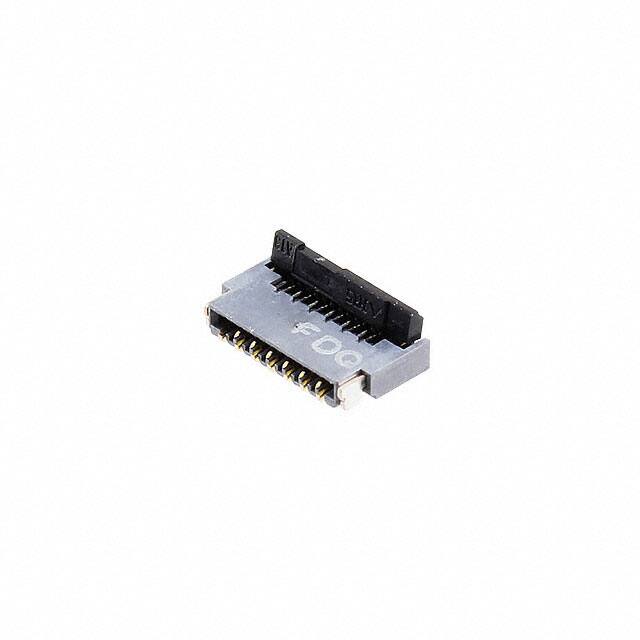

FH35C-13S-0.3SHW(99)

Teknik Özellikler

Contact Finish Thickness

1.18μin 0.030μm

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

13

Çalışma Sıcaklığı

-55°C~85°C

Pcb Contact Pattern

STAGGERED

Current Rating Amps

0.2A

Flammability Rating

UL94 V-0

Pitch

0.012 0.30mm

Pcb Contact Row Spacing

2.8702 mm

Contact Materials

Phosphor Bronze

Insulation Resistance

50MOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Liquid Crystal Polymer (LCP)

Dielectric Withstanding Voltage

90VAC V

Actuator Material

Polyamide (PA), Nylon

Contact Location

Dual

Number Of Pcb Rows

2

Terminal

Solder

Ffc Fcb Thickness

0.20mm

Flat Flex Type

FPC

Actuatorcolor

Black

Body Length Or Diameter

0.217 inch

RoHS Durumu

RoHS Compliant

Insertion Forcemax

ZIF N

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

Akım Değeri

200mA

REACH Uyumluluk Kodu

unknown

Sıra Sayısı

2

Contact Pattern

STAGGERED

Body Breadth

0.035 inch

Mating Cycles

10

Voltage Rated Ac

30V

Locking Feature

Flip Lock, Backlock

Contact Style

BELLOWED TYPE

Parça Durumu

Active

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Housing Color

Gray

Montaj

Surface Mount
