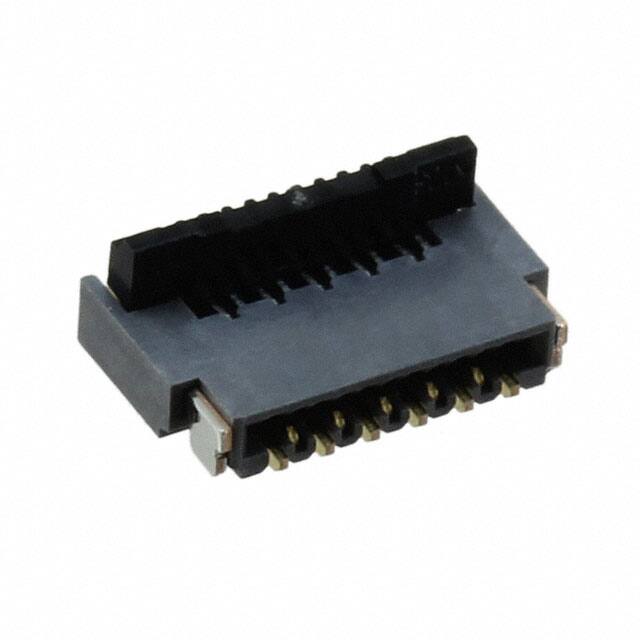

FH35C-11S-0.3SHW(50)

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~85°C

Pozisyon Sayısı

11

Contact Finish Thickness

11.8μin 0.30μm

Current Rating Amps

0.2A

Pcb Contact Pattern

STAGGERED

Contact Materials

Phosphor Bronze

Insulation Resistance

50MOhm

Pcb Contact Row Spacing

2.8702 mm

Pitch

0.012 0.30mm

Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

90VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Liquid Crystal Polymer (LCP)

Ffc Fcb Thickness

0.20mm

Terminal

Solder

Number Of Pcb Rows

2

Contact Location

Dual

Actuator Material

Polyamide (PA), Nylon

Voltage Rated Ac

30V

Body Breadth

0.035 inch

Mating Cycles

10

Sıra Sayısı

2

Contact Pattern

STAGGERED

REACH Uyumluluk Kodu

unknown

Akım Değeri

200mA

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

Actuatorcolor

Black

Body Length Or Diameter

0.193 inch

Flat Flex Type

FPC

Housing Color

Gray

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Contact Style

BELLOWED TYPE

Locking Feature

Flip Lock, Backlock

Ambalaj

Tape & Reel (TR)

Cable End Type

Tapered
