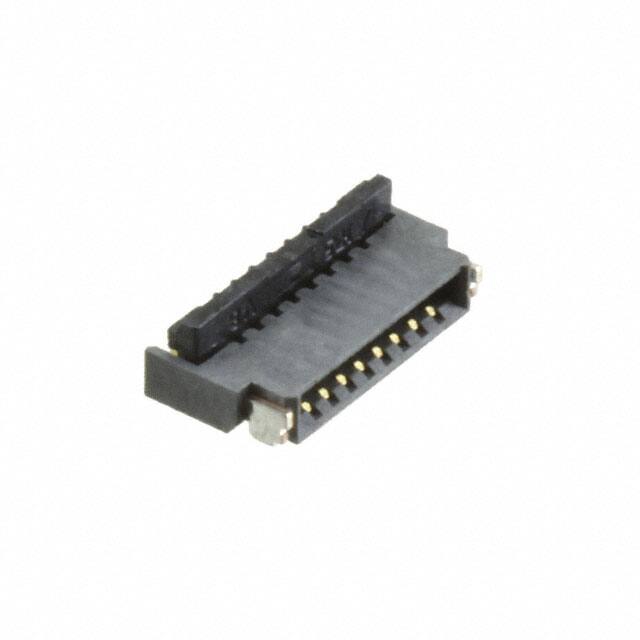

FH34SRJ-8S-0.5SH(99)

Teknik Özellikler

Reference Standard

UL

Number Of Pcb Rows

1

Actuator Material

Polyamide (PA), Nylon

Ffc Fcb Thickness

0.30mm

Terminal

Solder

Özellikler

Zero Insertion Force (ZIF)

Contact Finish

Gold

Akım Değeri

500mA

RoHS Durumu

RoHS Compliant

Insertion Forcemax

ZIF N

Montaj Tipi

Surface Mount, Right Angle

Body Length Or Diameter

0.236 inch

Actuatorcolor

Black

Flat Flex Type

FFC, FPC

Body Breadth

0.039 inch

Mating Cycles

20

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

REACH Uyumluluk Kodu

unknown

Contact Resistance

100mOhm

Contact Style

BELLOWED TYPE

Locking Feature

Rotary Lock, Backlock

Housing Color

Gray

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Parça Durumu

Active

Total Number Of Contacts

8

Body Depth

0.126 inch

Montaj

Surface Mount

Cable End Type

Tapered

Ambalaj

Tape & Reel (TR)

Height Above Board

0.039 1.00mm

Seri

FH34SRJ

Çalışma Sıcaklığı

-55°C~85°C

Fabrika Tedarik Süresi

12 Weeks

Pozisyon Sayısı

8

Current Rating Amps

0.5A

Pcb Contact Pattern

RECTANGULAR

Insulation Resistance

500000000Ohm

Contact Materials

Phosphor Bronze
