Adet bazlı fiyat
- 1+ adet$1.87
- 10+ adet$1.77
- 100+ adet$1.67
- 500+ adet$1.57
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Housing Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)

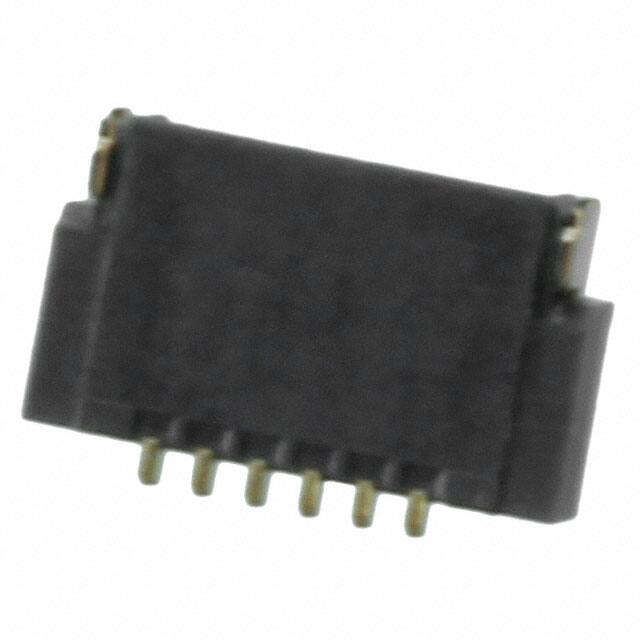

- Connector Type
- FFC/FPC CONNECTOR
- Kurşunsuz
- Lead Free
- Nominal Gerilim
- 50V
- Pitch
- 0.020 0.50mm
- Insulation Resistance
- 500000000Ohm
- Contact Materials
- Phosphor Bronze
- Flammability Rating
- UL94 V-0
- Current Rating Amps
- 0.5A
- Pcb Contact Pattern
- RECTANGULAR
- Çalışma Sıcaklığı
- -55°C~85°C
- Fabrika Tedarik Süresi
- 12 Weeks
- Pozisyon Sayısı
- 6
- Cable End Type
- Tapered
- Ambalaj
- Tape & Reel (TR)
- Height Above Board
- 0.039 1.00mm
- Seri
- FH34SRJ
- Total Number Of Contacts
- 6
- Montaj
- Surface Mount
- Reliability
- COMMERCIAL
- Material Flammability Rating
- UL94 V-0
- Housing Color
- Gray
- Parça Durumu
- Active
- Locking Feature
- Rotary Lock, Backlock
- Contact Style
- BELLOWED TYPE
- Body Breadth
- 0.039 inch
- Mating Cycles
- 20
- Contact Resistance
- 100mOhm
- REACH Uyumluluk Kodu
- unknown
- Contact Pattern
- RECTANGULAR
- Sıra Sayısı
- 1
- RoHS Durumu
- RoHS Compliant
- Insertion Forcemax
- ZIF N
- Montaj Tipi
- Surface Mount, Right Angle
- ECCN Kodu
- EAR99
- Contact Finish
- Gold
- Akım Değeri
- 500mA
- Flat Flex Type
- FFC, FPC
- Body Length Or Diameter
- 0.197 inch
