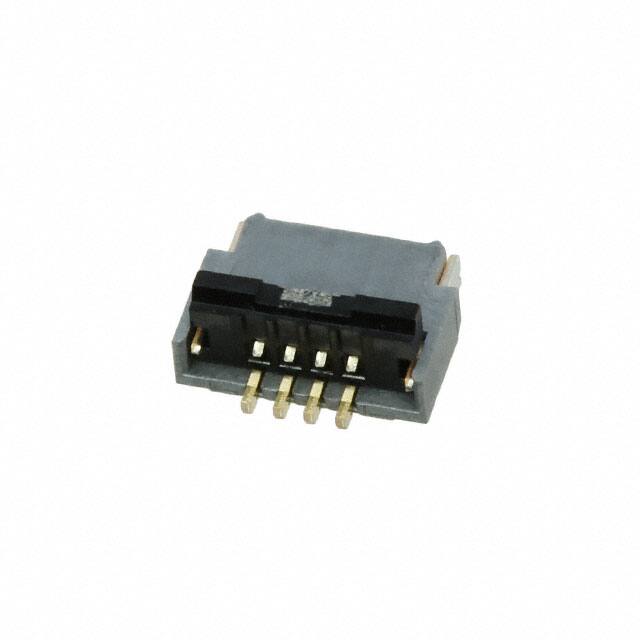

FH34SRJ-4S-0.5SH(99)

Teknik Özellikler

Akım Değeri

500mA

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

Actuatorcolor

Black

Body Length Or Diameter

0.158 inch

Flat Flex Type

FFC, FPC

Body Breadth

0.039 inch

Mating Cycles

20

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Contact Resistance

100mOhm

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Number Of Pcb Rows

1

Actuator Material

Polyamide (PA), Nylon

Ffc Fcb Thickness

0.30mm

Özellikler

Zero Insertion Force (ZIF)

Terminal

Solder

Total Number Of Contacts

4

Body Depth

0.126 inch

Montaj

Surface Mount

Ambalaj

Tape & Reel (TR)

Cable End Type

Tapered

Seri

FH34SRJ

Height Above Board

0.039 1.00mm

Contact Style

BELLOWED TYPE

Locking Feature

Rotary Lock, Backlock

Housing Color

Gray

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Parça Durumu

Active

Current Rating Amps

0.5A

Pcb Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-55°C~85°C

Fabrika Tedarik Süresi

11 Weeks

Pozisyon Sayısı

4

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free
