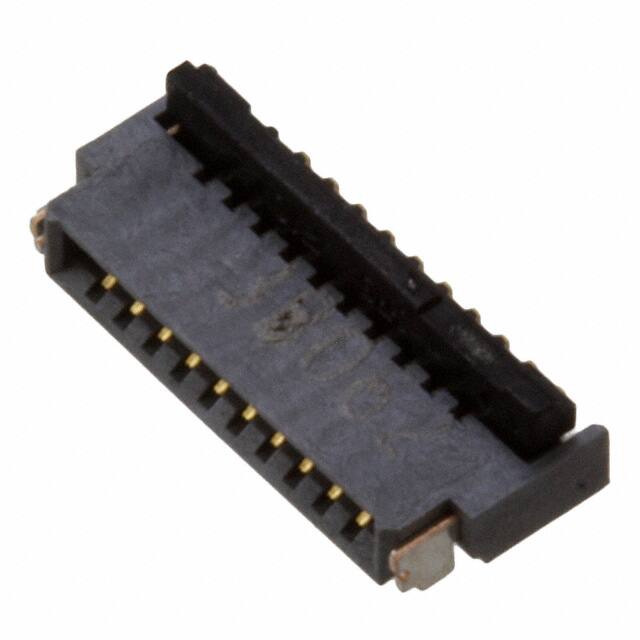

FH34SRJ-10S-0.5SH(50)

Teknik Özellikler

Iec Conformance

NO

Current Rating Amps

0.5A

Din Conformance

NO

Gender

Receptacle

Contact Finish Thickness

1.97μin 0.050μm

Pozisyon Sayısı

10

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

FFC/FPC CONNECTOR

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Pitch

0.020 0.50mm

Option

GENERAL PURPOSE

Nominal Gerilim

50V

Contact Materials

Phosphor Bronze

Mil Conformance

NO

Kurşunsuz

Lead Free

Flat Flex Type

FFC, FPC

Actuatorcolor

Black

RoHS Durumu

RoHS Compliant

Montaj Tipi

Surface Mount, Right Angle

ECCN Kodu

EAR99

Contact Finish

Gold

Akım Değeri

500mA

Sıra Sayısı

1

Mating Cycles

20

Mixed Contacts

NO

Filter Feature

NO

Actuator Material

Polyamide (PA), Nylon

Özellikler

Zero Insertion Force (ZIF)

Terminal

Solder

Ul Flammability Code

94V-0

Ffc Fcb Thickness

0.30mm

Reach Svhc

No SVHC

Montaj

Surface Mount

Total Number Of Contacts

10

Height Above Board

0.039 1.00mm

Seri

FH34SRJ

Cable End Type

Tapered

Ambalaj

Tape & Reel (TR)
