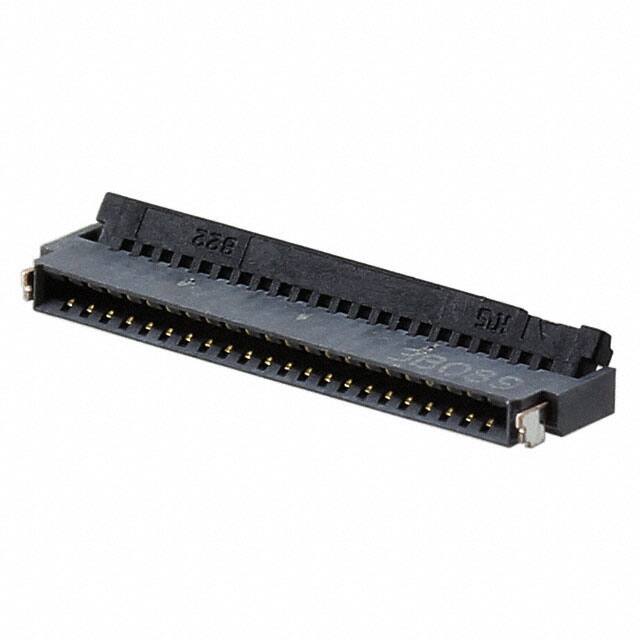

FH34SR-22S-0.5SH(50)

Teknik Özellikler

Seri

FH34SR

Height Above Board

0.039 1.00mm

Ambalaj

Tape & Reel (TR)

Cable End Type

Tapered

Montaj

Surface Mount

Reach Svhc

No SVHC

Total Number Of Contacts

22

Parça Durumu

Obsolete

Housing Color

Gray

Material Flammability Rating

UL94 V-0

Locking Feature

Rotary Lock, Backlock

Additional Feature

LOW PROFILE

Sıra Sayısı

1

REACH Uyumluluk Kodu

unknown

Filter Feature

NO

Mixed Contacts

NO

Mating Cycles

20

Actuatorcolor

Black

Flat Flex Type

FFC, FPC

Contact Finish

Gold

ECCN Kodu

EAR99

Akım Değeri

500mA

Montaj Tipi

Surface Mount, Right Angle

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Terminal

Solder

Özellikler

Zero Insertion Force (ZIF)

Ffc Fcb Thickness

0.30mm

Actuator Material

Polyamide (PA), Nylon

Connector Type

FFC/FPC CONNECTOR

Housing Material

Liquid Crystal Polymer (LCP)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Flammability Rating

UL94 V-0

JESD-609 Kodu

e4

Insulation Resistance

500MOhm

Contact Materials

Phosphor Bronze

Nominal Gerilim

50V

Pitch

0.020 0.50mm

Option

GENERAL PURPOSE
