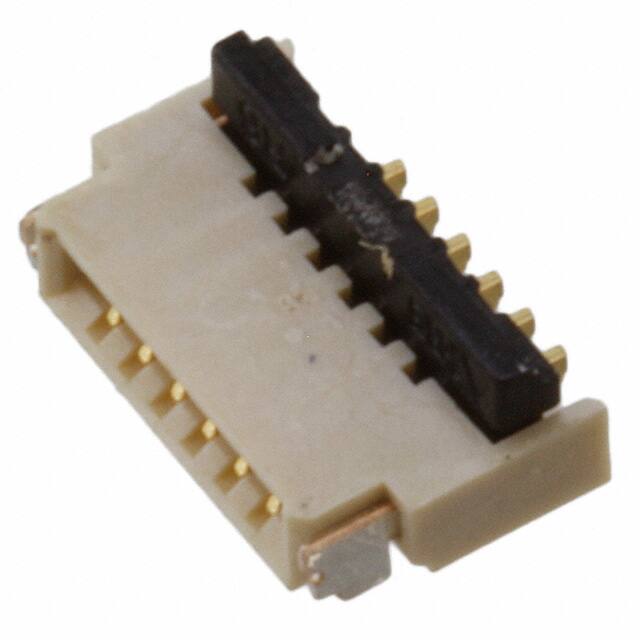

FH34SJ-6S-0.5SH(50)

Teknik Özellikler

Wirecable Type

Flat Flex

Pcb Contact Pattern

RECTANGULAR

Current Rating Amps

0.5A

Din Conformance

NO

Pozisyon Sayısı

6

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

FFC/FPC CONNECTOR

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze

Insulation Resistance

500MOhm

Mil Conformance

NO

Kurşunsuz

Lead Free

Flat Flex Type

FFC, FPC

Actuatorcolor

Black

RoHS Durumu

RoHS Compliant

Akım Değeri

500mA

Mixed Contacts

NO

Mating Cycles

20

Filter Feature

NO

Reference Standard

UL

Terminal

Solder

Reach Svhc

No SVHC

Total Number Of Contacts

6

Cable End Type

Tapered

Locking Feature

Rotary Lock, Backlock

Parça Durumu

Obsolete

Iec Conformance

YES

Gender

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Plating Thickness

2μin

JESD-609 Kodu

e4

Flammability Rating

UL94 V-0

Nominal Gerilim

50V

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

Kurşunsuz Kodu

yes

REACH Uyumluluk Kodu

unknown

Sıra Sayısı

1
