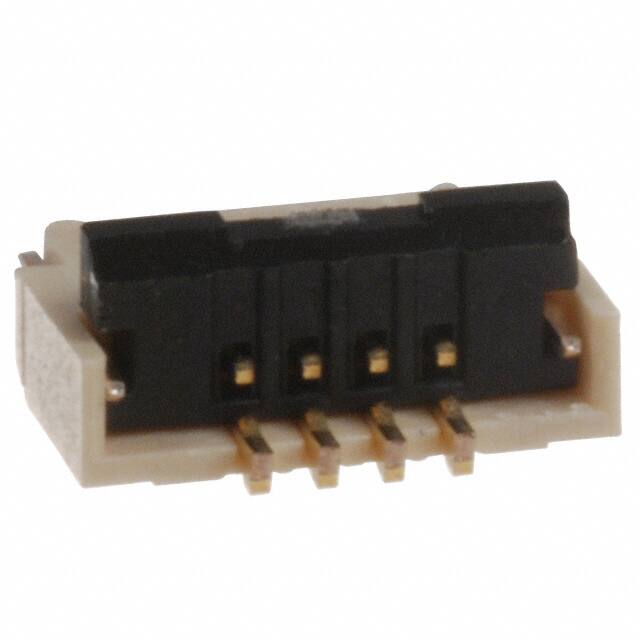

FH34S-4S-0.5SH(50)

Teknik Özellikler

Depth

3.8mm

Iec Conformance

NO

Radyasyon Dayanımı

No

Gender

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e4

Plating Thickness

2μin

Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Insertion Forcemax

ZIF N

Kurşunsuz Kodu

yes

Contact Finish

Gold

Contact Resistance

100mOhm

Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Additional Feature

LOW PROFILE

Body Breadth

0.039 inch

Withdrawl Forcemin

ZIF N

Actuator Material

Polyamide (PA), Nylon

Number Of Pcb Rows

1

Özellikler

Zero Insertion Force (ZIF)

Ffc Fcb Thickness

0.30mm

Montaj

Surface Mount

Max Voltage Rating Ac

50V

Max Current Rating

500mA

Seri

FH34S

Height Above Board

0.039 1.00mm

Ambalaj

Tape & Reel (TR)

Contact Style

BELLOWED TYPE

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Housing Color

Beige

Pcb Contact Pattern

RECTANGULAR

Current Rating Amps

0.5A

Din Conformance

NO

Pozisyon Sayısı

4

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

FFC/FPC CONNECTOR

Housing Material

Liquid Crystal Polymer (LCP)

Dielectric Withstanding Voltage

350VAC V
