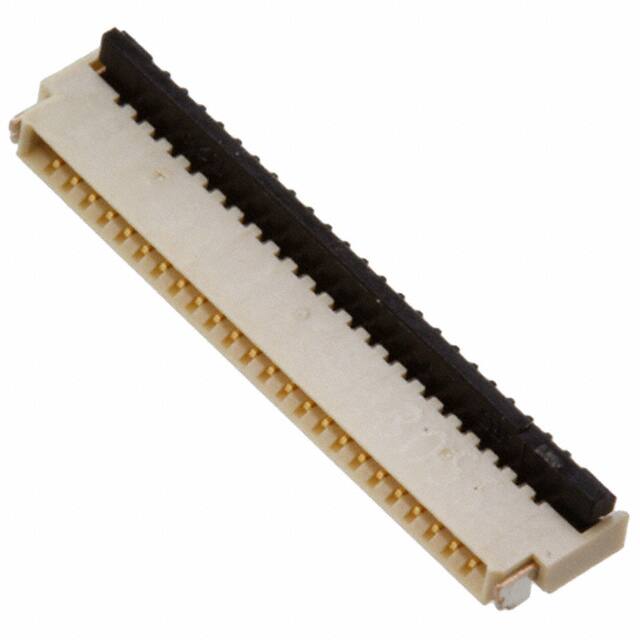

FH34S-24S-0.5SH(50)

Teknik Özellikler

Housing Material

Liquid Crystal Polymer (LCP)

Connector Type

FFC/FPC CONNECTOR

Mil Conformance

NO

Insulation Resistance

500MOhm

Contact Materials

Phosphor Bronze

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm

Din Conformance

NO

Current Rating Amps

0.5A

Pcb Contact Pattern

RECTANGULAR

Wirecable Type

Flat Flex

Çalışma Sıcaklığı

-55°C~85°C

Pozisyon Sayısı

24

Cable End Type

Tapered

Total Number Of Contacts

24

Reach Svhc

No SVHC

Parça Durumu

Obsolete

Locking Feature

Rotary Lock, Backlock

Filter Feature

NO

Mating Cycles

20

Mixed Contacts

NO

Akım Değeri

500mA

RoHS Durumu

RoHS Compliant

Actuatorcolor

Black

Flat Flex Type

FFC, FPC

Terminal

Solder

Reference Standard

UL

Contact Location

Dual

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Gerilim

50V

Flammability Rating

UL94 V-0

JESD-609 Kodu

e4

Plating Thickness

2μin

Iec Conformance

NO

Gender

Receptacle

Ambalaj

Tape & Reel (TR)

Height Above Board

0.039 1.00mm

Seri

FH34S

Montaj

Surface Mount

Housing Color

Beige
