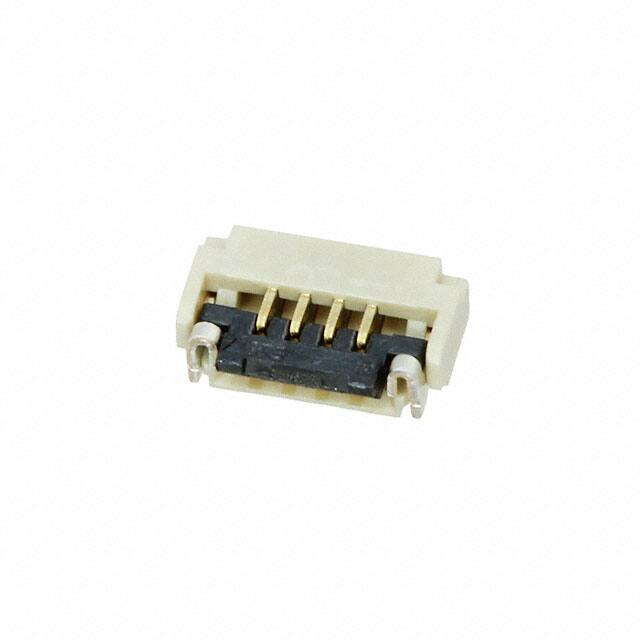

FH33J-4S-0.5SH(99)

Teknik Özellikler

Height Above Board

0.047 1.20mm

Seri

FH33J

Cable End Type

Tapered

Ambalaj

Tape & Reel (TR)

Body Depth

0.098 inch

Montaj

Surface Mount

Total Number Of Contacts

4

Parça Durumu

Active

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Locking Feature

Flip Lock

Contact Style

BELLOWED TYPE

Contact Resistance

50mOhm

REACH Uyumluluk Kodu

unknown

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Body Breadth

0.106 inch

Mating Cycles

20

Flat Flex Type

FFC, FPC

Body Length Or Diameter

0.157 inch

Montaj Tipi

Surface Mount, Right Angle

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

ECCN Kodu

EAR99

Contact Finish

Gold

Akım Değeri

500mA

Terminal

Solder

Özellikler

Zero Insertion Force (ZIF)

Ffc Fcb Thickness

0.30mm

Actuator Material

Polyphenylene Sulfide (PPS)

Number Of Pcb Rows

1

Reference Standard

UL

Connector Type

FFC/FPC CONNECTOR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Plating Thickness

FLASH inch

Flammability Rating

UL94 V-0

Nominal Gerilim

50V

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze
