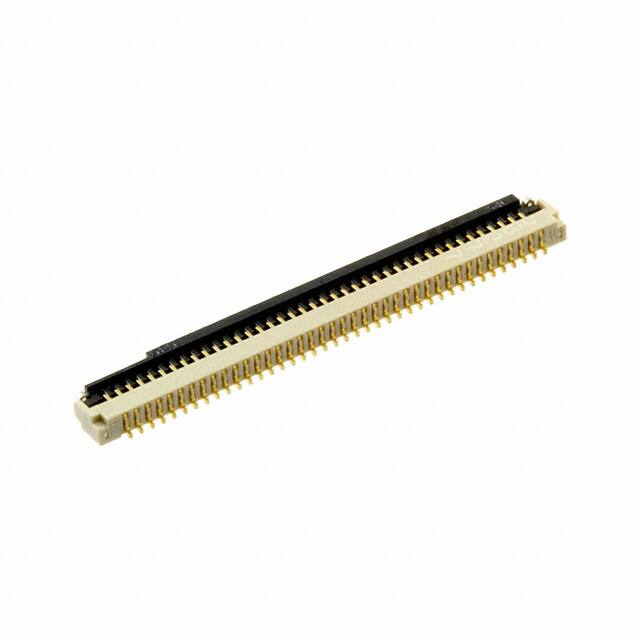

FH33J-40S-0.5SH(99)

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Connector Type

FFC/FPC CONNECTOR

Insulation Resistance

500000000Ohm

Contact Materials

Phosphor Bronze

Nominal Gerilim

50V

Pitch

0.020 0.50mm

Flammability Rating

UL94 V-0

Plating Thickness

FLASH inch

Current Rating Amps

0.5A

Pcb Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-55°C~85°C

Pozisyon Sayısı

40

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

40

Body Depth

0.098 inch

Montaj

Surface Mount

Cable End Type

Tapered

Ambalaj

Tape & Reel (TR)

Height Above Board

0.047 1.20mm

Seri

FH33J

Contact Style

BELLOWED TYPE

Locking Feature

Flip Lock

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Akım Değeri

500mA

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

Body Length Or Diameter

0.866 inch

Flat Flex Type

FFC, FPC

Body Breadth

0.106 inch

Mating Cycles

20

Contact Pattern

RECTANGULAR

Sıra Sayısı

1

REACH Uyumluluk Kodu

unknown

Contact Resistance

50mOhm

Reference Standard

UL
