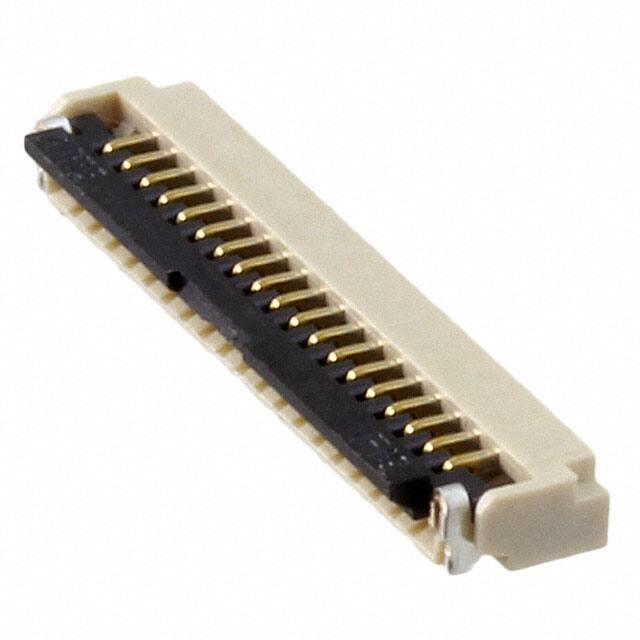

FH33J-19S-0.5SH(10)

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Gerilim

50V

JESD-609 Kodu

e3

Flammability Rating

UL94 V-0

Iec Conformance

NO

Gender

Receptacle

Montaj

Surface Mount

Ambalaj

Tape & Reel (TR)

Seri

FH33J

Height Above Board

0.047 1.20mm

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Contact Finish

Gold

Contact Resistance

50mOhm

Sıra Sayısı

1

Additional Feature

ZIF, LOW PROFILE

Actuator Material

Polyphenylene Sulfide (PPS)

Number Of Pcb Rows

1

Ffc Fcb Thickness

0.30mm

Ul Flammability Code

94V-0

Özellikler

Zero Insertion Force (ZIF)

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Connector Type

FFC/FPC CONNECTOR

Pitch

0.020 0.50mm

Option

GENERAL PURPOSE

Insulation Resistance

500MOhm

Contact Materials

Phosphor Bronze

Mil Conformance

NO

Wirecable Type

Flat Flex

Current Rating Amps

0.5A

Din Conformance

NO

Contact Finish Thickness

Flash

Çalışma Sıcaklığı

-55°C~85°C

Pozisyon Sayısı

19

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

19

Reach Svhc

Unknown
