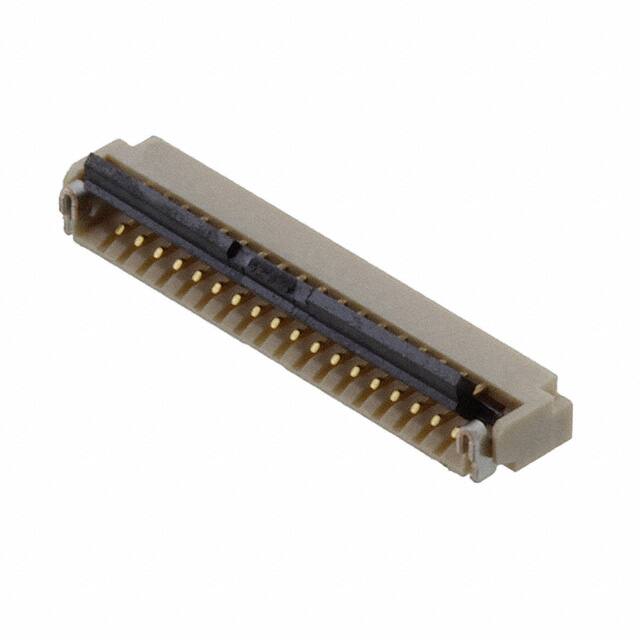

FH33J-18S-0.5SH(99)

Teknik Özellikler

Current Rating Amps

0.5A

Pcb Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-55°C~85°C

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

18

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

FFC/FPC CONNECTOR

Insulation Resistance

500000000Ohm

Contact Materials

Phosphor Bronze

Nominal Gerilim

50V

Pitch

0.020 0.50mm

Flammability Rating

UL94 V-0

Plating Thickness

FLASH inch

Mating Cycles

20

Body Breadth

0.106 inch

Contact Pattern

RECTANGULAR

Sıra Sayısı

1

REACH Uyumluluk Kodu

unknown

Contact Resistance

50mOhm

Akım Değeri

500mA

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

Body Length Or Diameter

0.433 inch

Flat Flex Type

FFC, FPC

Ffc Fcb Thickness

0.30mm

Terminal

Solder

Özellikler

Zero Insertion Force (ZIF)

Reference Standard

UL

Number Of Pcb Rows

1

Actuator Material

Polyphenylene Sulfide (PPS)

Ambalaj

Tape & Reel (TR)

Cable End Type

Tapered

Height Above Board

0.047 1.20mm

Seri

FH33J

Total Number Of Contacts

18

Body Depth

0.098 inch

Montaj

Surface Mount
