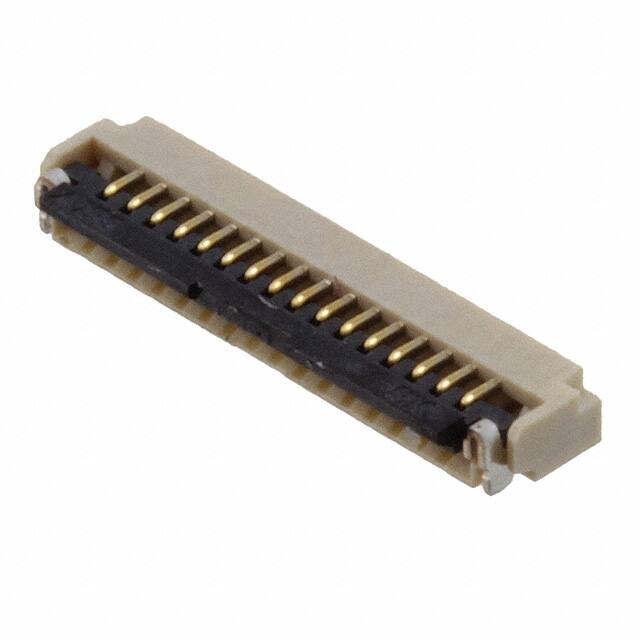

FH33J-16S-0.5SH(10)

Teknik Özellikler

Gender

Receptacle

Iec Conformance

NO

Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Nominal Gerilim

50V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

1

Actuator Material

Polyphenylene Sulfide (PPS)

Özellikler

Zero Insertion Force (ZIF)

Ul Flammability Code

94V-0

Ffc Fcb Thickness

0.30mm

Contact Finish

Gold

Kurşunsuz Kodu

yes

Montaj Tipi

Surface Mount, Right Angle

Additional Feature

ZIF, LOW PROFILE

Sıra Sayısı

1

REACH Uyumluluk Kodu

unknown

Contact Resistance

50mOhm

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Montaj

Surface Mount

Height Above Board

0.047 1.20mm

Seri

FH33J

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness

Flash

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

16

Çalışma Sıcaklığı

-55°C~85°C

Wirecable Type

Flat Flex

Din Conformance

NO

Current Rating Amps

0.5A

Contact Materials

Phosphor Bronze

Insulation Resistance

500MOhm

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm

Mil Conformance

NO

Connector Type

FFC/FPC CONNECTOR

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Reference Standard

UL

Terminal

Solder
