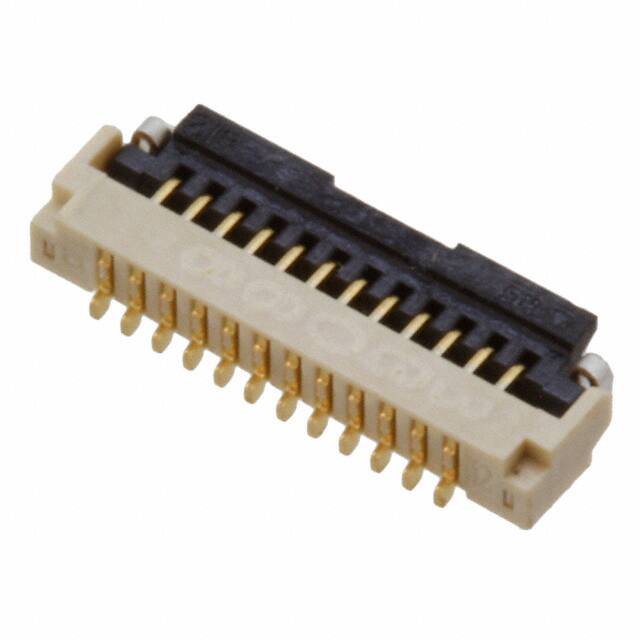

FH33J-12S-0.5SH(10)

Teknik Özellikler

Parça Durumu

Active

Locking Feature

Flip Lock

Cable End Type

Tapered

Total Number Of Contacts

12

Reach Svhc

No SVHC

Terminal

Solder

Reference Standard

UL

Mixed Contacts

NO

Mating Cycles

20

Filter Feature

NO

RoHS Durumu

RoHS Compliant

Akım Değeri

500mA

Flat Flex Type

FFC, FPC

Mil Conformance

NO

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze

Insulation Resistance

500MOhm

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Connector Type

FFC/FPC CONNECTOR

Çalışma Sıcaklığı

-55°C~85°C

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

12

Contact Finish Thickness

Flash

Current Rating Amps

0.5A

Din Conformance

NO

Wirecable Type

Flat Flex

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Ambalaj

Tape & Reel (TR)

Height Above Board

0.047 1.20mm

Seri

FH33J

Montaj

Surface Mount

Ffc Fcb Thickness

0.30mm

Özellikler

Zero Insertion Force (ZIF)

Ul Flammability Code

94V-0

Actuator Material

Polyphenylene Sulfide (PPS)

Number Of Pcb Rows

1

REACH Uyumluluk Kodu

unknown

Contact Resistance

50mOhm
