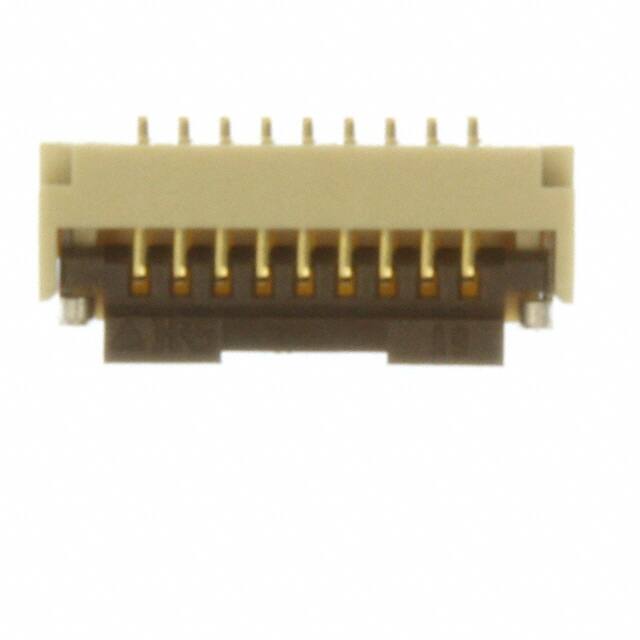

FH33-9S-0.5SH(10)

Teknik Özellikler

Current Rating Amps

0.5A

Lead Pitch

500μm

Din Conformance

NO

Çalışma Sıcaklığı

-55°C~85°C

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

9

Contact Finish Thickness

Flash

Housing Material

Polyamide (PA), Nylon

Connector Type

FFC/FPC CONNECTOR

Kurşunsuz

Lead Free

Mil Conformance

NO

Orientation

Right Angle

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze

Insulation Resistance

500000000Ohm

Mating Cycles

20

Mixed Contacts

NO

Filter Feature

NO

RoHS Durumu

RoHS Compliant

Akım Değeri

500mA

Flat Flex Type

FFC, FPC

Terminal

Solder

Reference Standard

UL

Cable End Type

Tapered

Total Number Of Contacts

9

Reach Svhc

Unknown

Parça Durumu

Active

Locking Feature

Flip Lock

Iec Conformance

NO

Radyasyon Dayanımı

No

Gender

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Gerilim

50V

JESD-609 Kodu

e3

Flammability Rating

UL94 V-0

Body Breadth

0.047 inch

Contact Resistance

50mOhm

Contact Pattern

RECTANGULAR

Sıra Sayısı

2
