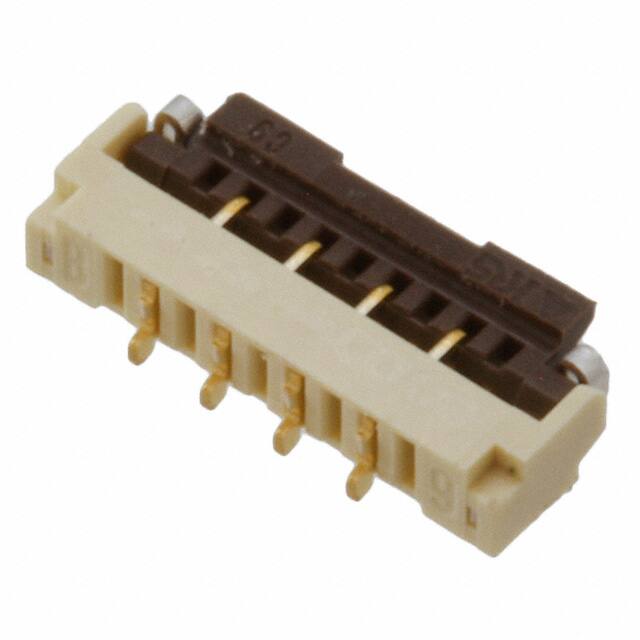

FH33-4S-1SH(99)

Teknik Özellikler

Current Rating Amps

0.5A

Pcb Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-55°C~85°C

Pozisyon Sayısı

4

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polyamide (PA), Nylon

Connector Type

FFC/FPC CONNECTOR

Pitch

0.039 1.00mm

Nominal Gerilim

50V

Contact Materials

Phosphor Bronze

Insulation Resistance

500000000Ohm

Plating Thickness

FLASH inch

Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

Akım Değeri

500mA

Contact Finish

Gold

Flat Flex Type

FFC, FPC

Body Length Or Diameter

0.256 inch

Yayın Yılı

2015

Body Breadth

0.106 inch

Mating Cycles

20

Contact Resistance

50mOhm

REACH Uyumluluk Kodu

unknown

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Reference Standard

UL

Actuator Material

Polyamide (PA), Nylon

Number Of Pcb Rows

1

Ffc Fcb Thickness

0.30mm

Özellikler

Zero Insertion Force (ZIF)

Terminal

Solder

Total Number Of Contacts

4

Montaj

Surface Mount

Body Depth

0.121 inch

Ambalaj

Tape & Reel (TR)

Cable End Type

Tapered

Seri

FH33
