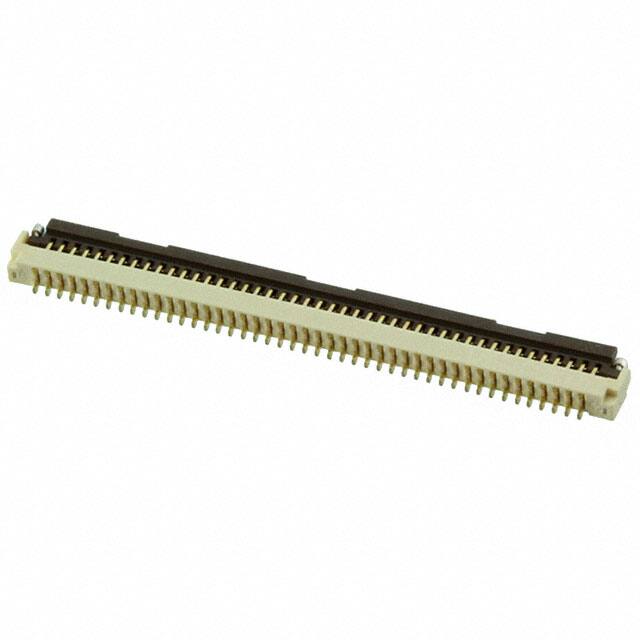

FH33-45S-0.5SH(10)

Teknik Özellikler

Pozisyon Sayısı

45

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~85°C

Contact Finish Thickness

Flash

Current Rating Amps

0.5A

Din Conformance

NO

Wirecable Type

Flat Flex

Mil Conformance

NO

Kurşunsuz

Lead Free

Option

GENERAL PURPOSE

Orientation

Right Angle

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze

Insulation Resistance

500MOhm

Connector Type

FFC/FPC CONNECTOR

Housing Material

Polyamide (PA), Nylon

Terminal

Solder

Reference Standard

UL

Mating Cycles

20

Mixed Contacts

NO

Filter Feature

NO

Flat Flex Type

FFC, FPC

RoHS Durumu

RoHS Compliant

Contact Gender

FEMALE

Akım Değeri

500mA

Parça Durumu

Active

Locking Feature

Flip Lock

Cable End Type

Tapered

Total Number Of Contacts

45

Iec Conformance

NO

Radyasyon Dayanımı

No

JESD-609 Kodu

e3

Flammability Rating

UL94 V-0

Nominal Gerilim

50V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ul Flammability Code

94V-0

Özellikler

Zero Insertion Force (ZIF)

Ffc Fcb Thickness

0.30mm

Actuator Material

Polyamide (PA), Nylon

Number Of Pcb Rows

1
