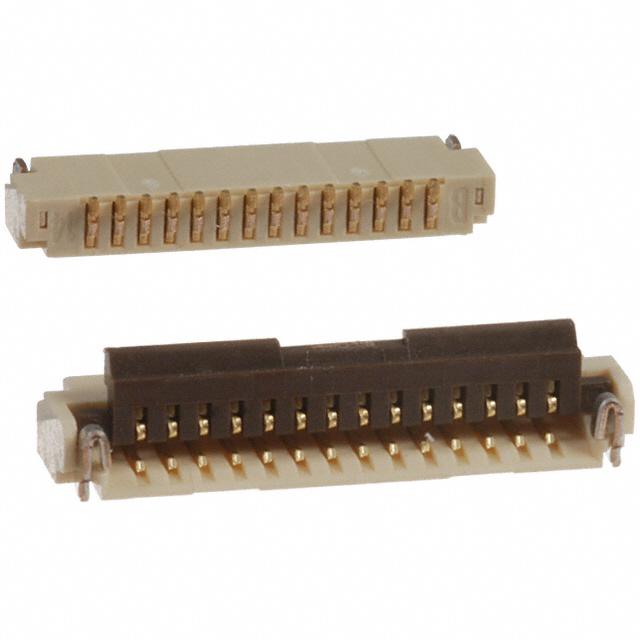

FH33-14S-0.5SH(10)

Teknik Özellikler

Iec Conformance

NO

Gender

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Nominal Gerilim

50V

Sıra Sayısı

1

Additional Feature

ZIF, LOW PROFILE

REACH Uyumluluk Kodu

unknown

Contact Resistance

50mOhm

Contact Finish

Gold

Kurşunsuz Kodu

yes

Montaj Tipi

Surface Mount, Right Angle

Özellikler

Zero Insertion Force (ZIF)

Ul Flammability Code

94V-0

Ffc Fcb Thickness

0.30mm

Number Of Pcb Rows

1

Actuator Material

Polyamide (PA), Nylon

Seri

FH33

Height Above Board

0.047 1.20mm

Ambalaj

Tape & Reel (TR)

Montaj

Surface Mount

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Din Conformance

NO

Current Rating Amps

0.5A

Lead Pitch

500μm

Pozisyon Sayısı

14

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~85°C

Contact Finish Thickness

Flash

Connector Type

FFC/FPC CONNECTOR

Housing Material

Polyamide (PA), Nylon

Mil Conformance

NO

Kurşunsuz

Lead Free

Contact Materials

Phosphor Bronze

Insulation Resistance

500000000Ohm

Orientation

Right Angle

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm
