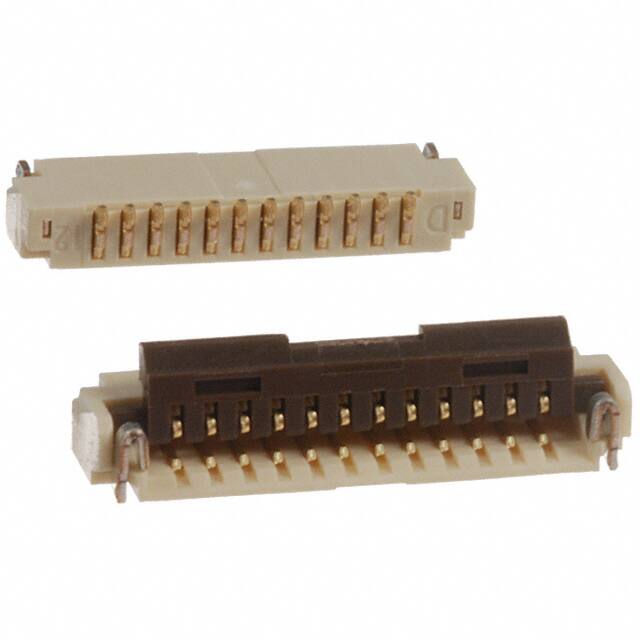

FH33-12S-0.5SH(10)

Teknik Özellikler

Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Depth

2.7mm

Radyasyon Dayanımı

No

Iec Conformance

NO

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Max Current Rating

500mA

Max Voltage Rating Ac

50V

Montaj

Surface Mount

Ambalaj

Tape & Reel (TR)

Height Above Board

0.047 1.20mm

Seri

FH33

Number Of Pcb Rows

1

Actuator Material

Polyamide (PA), Nylon

Ffc Fcb Thickness

0.30mm

Ul Flammability Code

94V-0

Özellikler

Zero Insertion Force (ZIF)

Kurşunsuz Kodu

yes

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Sıra Sayısı

1

Additional Feature

ZIF, LOW PROFILE

Contact Resistance

50mOhm

Insulation Resistance

500000000Ohm

Contact Materials

Phosphor Bronze

Pitch

0.020 0.50mm

Option

GENERAL PURPOSE

Orientation

Right Angle

Mil Conformance

NO

Kurşunsuz

Lead Free

Housing Material

Polyamide (PA), Nylon

Connector Type

FFC/FPC CONNECTOR

Contact Finish Thickness

Flash

Çalışma Sıcaklığı

-55°C~85°C

Pozisyon Sayısı

12

Fabrika Tedarik Süresi

10 Weeks

Din Conformance

NO
