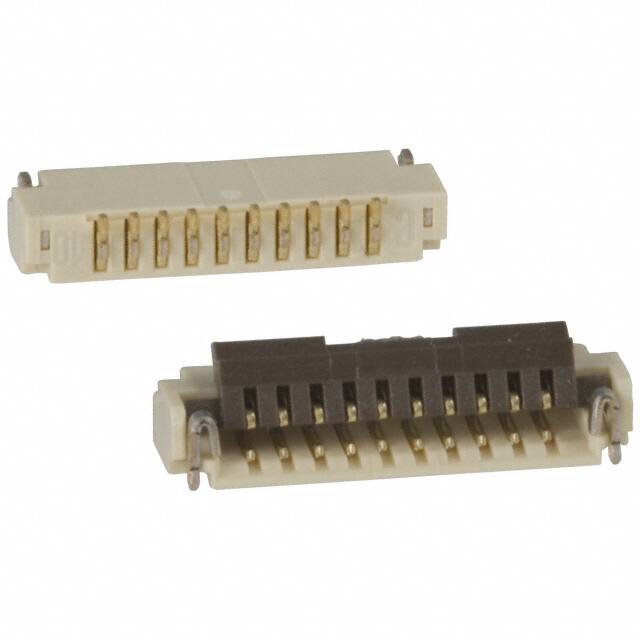

FH33-10S-0.5SH(10)

Teknik Özellikler

Total Number Of Contacts

10

Reach Svhc

No SVHC

Cable End Type

Tapered

Locking Feature

Flip Lock

Parça Durumu

Active

Akım Değeri

500mA

RoHS Durumu

RoHS Compliant

Flat Flex Type

FFC, FPC

Filter Feature

NO

Mixed Contacts

NO

Mating Cycles

20

Reference Standard

UL

Uzunluk

7mm

Terminal

Solder

Housing Material

Polyamide (PA), Nylon

Connector Type

FFC/FPC CONNECTOR

Insulation Resistance

500000000Ohm

Contact Materials

Phosphor Bronze

Pitch

0.020 0.50mm

Option

GENERAL PURPOSE

Orientation

Right Angle

Kurşunsuz

Lead Free

Mil Conformance

NO

Din Conformance

NO

Lead Pitch

500μm

Current Rating Amps

0.5A

Contact Finish Thickness

Flash

Çalışma Sıcaklığı

-55°C~85°C

Fabrika Tedarik Süresi

12 Weeks

Pozisyon Sayısı

10

Max Current Rating

500mA

Max Voltage Rating Ac

50V

Montaj

Surface Mount

Ambalaj

Tape & Reel (TR)

Height Above Board

0.047 1.20mm

Seri

FH33

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Contact Finish

Gold

Kurşunsuz Kodu

yes
