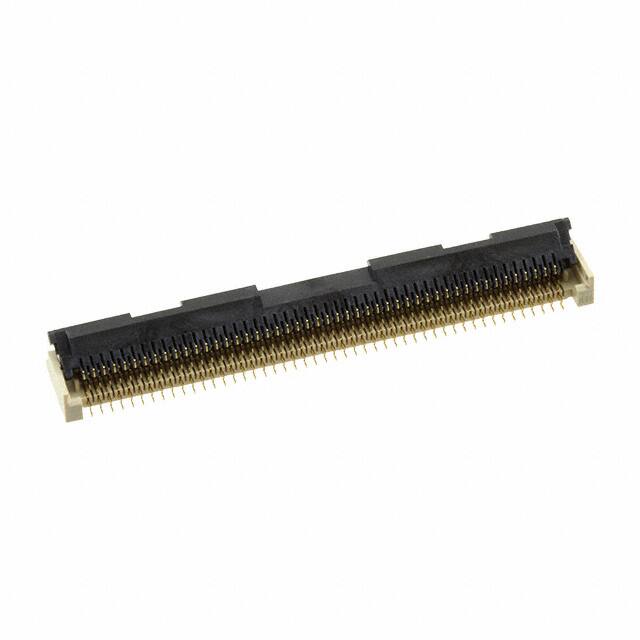

FH30M-96S-0.4SHW(98)

Teknik Özellikler

Pcb Contact Pattern

STAGGERED

Current Rating Amps

0.3A

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

96

Çalışma Sıcaklığı

-40°C~85°C

HTS Kodu

8536.69.40.40

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulator Color

BEIGE

Plating Thickness

FLASH inch

Flammability Rating

UL94 V-0

Pitch

0.016 0.40mm

Pcb Contact Row Spacing

4.6482 mm

Insulation Resistance

500000000Ohm

Contact Materials

Phosphor Bronze

Contact Resistance

150mOhm

REACH Uyumluluk Kodu

unknown

Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Mating Cycles

20

Body Breadth

0.118 inch

Flat Flex Type

FPC

Body Length Or Diameter

1.661 inch

RoHS Durumu

RoHS Compliant

Insertion Forcemax

ZIF N

Montaj Tipi

Surface Mount, Right Angle

Akım Değeri

300mA

Contact Finish

Gold

ECCN Kodu

EAR99

Terminal

Solder

Özellikler

Zero Insertion Force (ZIF)

Ffc Fcb Thickness

0.30mm

Number Of Pcb Rows

2

Reference Standard

UL

Seri

FH30

Height Above Board

0.118 3.00mm

Ambalaj

Tape & Reel (TR)

Cable End Type

Tabbed

Body Depth

0.258 inch

Montaj

Surface Mount
