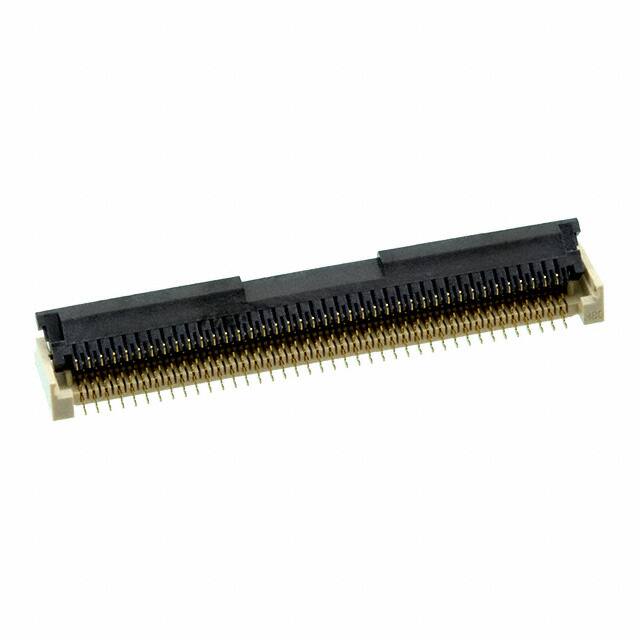

FH30M-80S-0.4SHW(98)

Teknik Özellikler

Pcb Contact Pattern

STAGGERED

Current Rating Amps

0.3A

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

80

Çalışma Sıcaklığı

-40°C~85°C

HTS Kodu

8536.69.40.40

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulator Color

BEIGE

Flammability Rating

UL94 V-0

Plating Thickness

FLASH inch

Insulation Resistance

500000000Ohm

Contact Materials

Phosphor Bronze

Pitch

0.016 0.40mm

Pcb Contact Row Spacing

4.6482 mm

Contact Pattern

RECTANGULAR

Sıra Sayısı

1

REACH Uyumluluk Kodu

unknown

Contact Resistance

150mOhm

Mating Cycles

20

Body Breadth

0.118 inch

Body Length Or Diameter

1.409 inch

Flat Flex Type

FPC

Contact Finish

Gold

ECCN Kodu

EAR99

Akım Değeri

300mA

Montaj Tipi

Surface Mount, Right Angle

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

Özellikler

Zero Insertion Force (ZIF)

Terminal

Solder

Ffc Fcb Thickness

0.30mm

Number Of Pcb Rows

2

Reference Standard

UL

Height Above Board

0.118 3.00mm

Seri

FH30

Cable End Type

Tabbed

Ambalaj

Tape & Reel (TR)

Body Depth

0.258 inch

Montaj

Surface Mount
