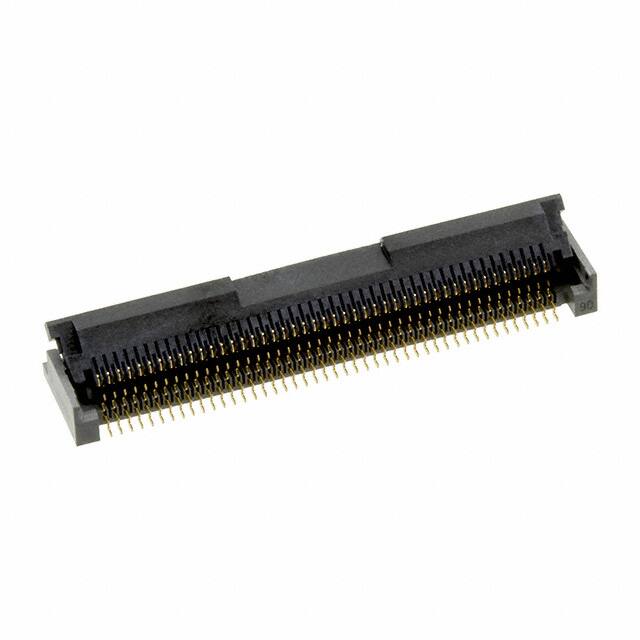

FH30-90S-0.3SHW(98)

Teknik Özellikler

HTS Kodu

8536.69.40.40

Çalışma Sıcaklığı

-40°C~85°C

Pozisyon Sayısı

90

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.15A

Pcb Contact Pattern

STAGGERED

Contact Materials

Phosphor Bronze

Insulation Resistance

500000000Ohm

Pitch

0.012 0.30mm

Pcb Contact Row Spacing

4.6482 mm

Flammability Rating

UL94 V-0

Plating Thickness

FLASH inch

Insulator Color

GRAY

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

127VAC V

Reference Standard

UL

Number Of Pcb Rows

2

Ffc Fcb Thickness

0.30mm

Özellikler

Zero Insertion Force (ZIF)

Terminal

Solder

Akım Değeri

150mA

Contact Finish

Gold

ECCN Kodu

EAR99

Montaj Tipi

Surface Mount, Right Angle

RoHS Durumu

RoHS Compliant

Insertion Forcemax

ZIF N

Body Length Or Diameter

1.216 inch

Flat Flex Type

FPC

Mating Cycles

20

Body Breadth

0.118 inch

Contact Pattern

RECTANGULAR

Sıra Sayısı

1

REACH Uyumluluk Kodu

unknown

Contact Resistance

150mOhm

Contact Style

BELLOWED TYPE

Locking Feature

Rotary Lock

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Parça Durumu

Active
