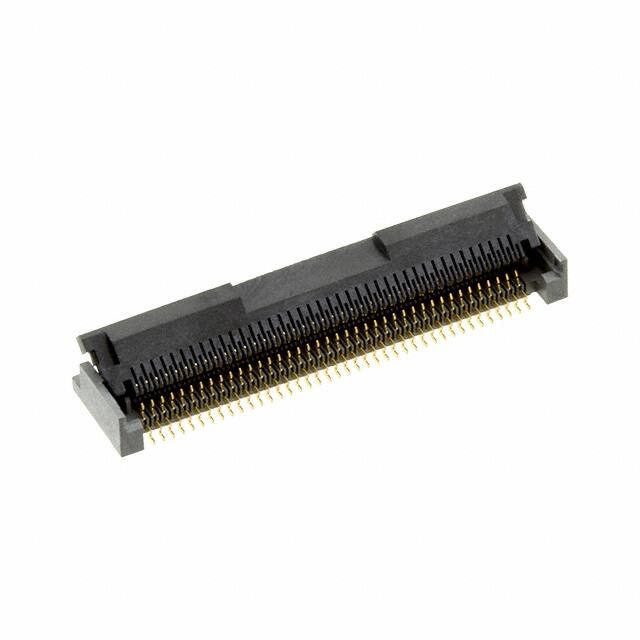

FH30-80S-0.3SHW(05)

Teknik Özellikler

Parça Durumu

Active

Locking Feature

Rotary Lock

Cable End Type

Tabbed

Total Number Of Contacts

80

Terminal

Solder

Uzunluk

27.9mm

Reference Standard

UL

Mating Cycles

20

Mixed Contacts

NO

Filter Feature

NO

Flat Flex Type

FPC

RoHS Durumu

RoHS Compliant

Akım Değeri

150mA

Contact Gender

FEMALE

Mil Conformance

NO

Kurşunsuz

Lead Free

Orientation

Right Angle

Option

GENERAL PURPOSE

Pitch

0.012 0.30mm

Insulation Resistance

500000000Ohm

Contact Materials

Phosphor Bronze

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Pozisyon Sayısı

80

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-40°C~85°C

HTS Kodu

8536.69.40.51

Current Rating Amps

0.15A

Din Conformance

NO

Wirecable Type

Flat

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Housing Color

Grey

Height Above Board

0.118 3.00mm

Seri

FH30

Ambalaj

Tape & Reel (TR)

Montaj

Surface Mount

Max Voltage Rating Ac

30V

Max Current Rating

150mA

Ul Flammability Code

94V-0

Özellikler

Zero Insertion Force (ZIF)
