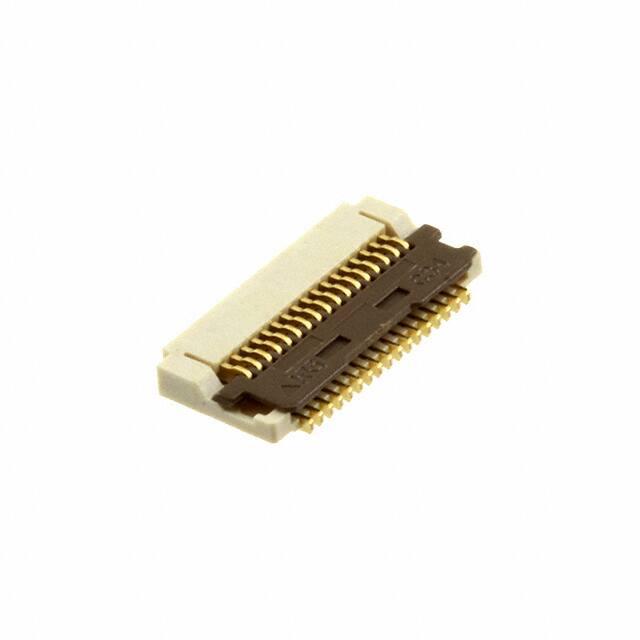

FH29B-34S-0.2SHW(99)

Teknik Özellikler

Gender

Female

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Gerilim

40V

Pcb Contact Row Spacing

4.7498 mm

Flammability Rating

UL94 V-0

Insertion Forcemax

ZIF N

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

ECCN Kodu

EAR99

Body Breadth

0.047 inch

REACH Uyumluluk Kodu

unknown

Contact Resistance

100mOhm

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Actuator Material

Polyamide (PA), Nylon

Number Of Pcb Rows

2

Ffc Fcb Thickness

0.20mm

Özellikler

Zero Insertion Force (ZIF)

Montaj

Surface Mount

Body Depth

0.179 inch

Ambalaj

Tape & Reel (TR)

Seri

FH29B

Height Above Board

0.047 1.20mm

Contact Style

BELLOWED TYPE

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Housing Color

Beige

Current Rating Amps

0.25A

Pcb Contact Pattern

RECTANGULAR

HTS Kodu

8536.69.40.40

Çalışma Sıcaklığı

-55°C~85°C

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

34

Housing Material

Liquid Crystal Polymer (LCP)

Dielectric Withstanding Voltage

160VAC V

Pitch

0.008 0.20mm

Contact Materials

Phosphor Bronze

Insulation Resistance

500000000Ohm

RoHS Durumu

RoHS Compliant

Akım Değeri

250mA
