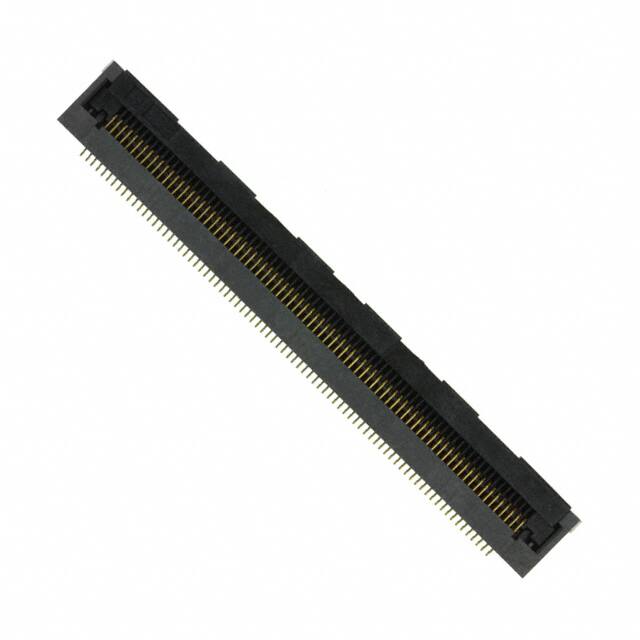

FH28H-80S-0.5SH(05)

Teknik Özellikler

Uzunluk

44.9mm

Terminal

Solder

RoHS Durumu

RoHS Compliant

Akım Değeri

500mA

Flat Flex Type

FFC, FPC

Actuatorcolor

Black

Mixed Contacts

NO

Mating Cycles

20

Filter Feature

NO

Locking Feature

Rotary Lock

Parça Durumu

Active

Total Number Of Contacts

80

Reach Svhc

No SVHC

Cable End Type

Tabbed

Çalışma Sıcaklığı

-40°C~105°C

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

80

Lead Pitch

500μm

Current Rating Amps

0.5A

Din Conformance

NO

Orientation

Right Angle

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze

Insulation Resistance

500MOhm

Mil Conformance

NO

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Connector Type

FFC/FPC CONNECTOR

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Ffc Fcb Thickness

0.30mm

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Kurşunsuz Kodu

yes

Contact Finish

Gold

Contact Resistance

50mOhm

Sıra Sayısı

1

Additional Feature

ZIF

Material Flammability Rating

UL94 V-0

Housing Color

Gray
