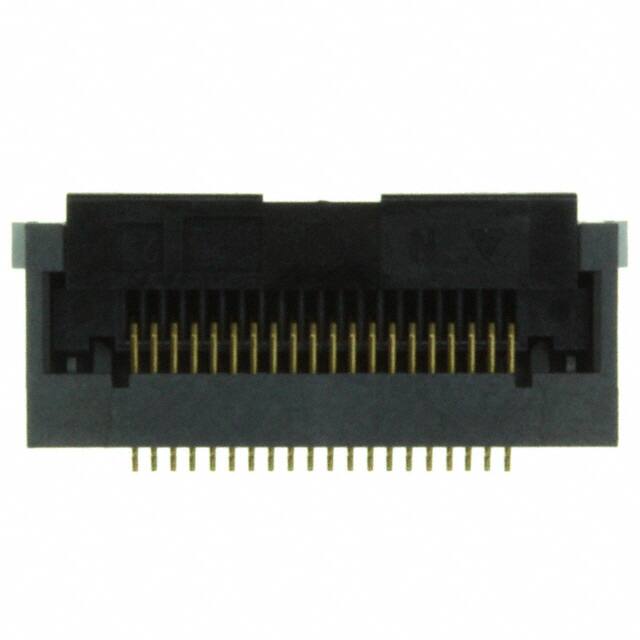

FH28E-20S-0.5SH(05)

Teknik Özellikler

Contact Style

BELLOWED TYPE

Housing Color

Gray

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Montaj

Surface Mount

Body Depth

0.252 inch

Seri

FH28

Height Above Board

0.100 2.54mm

Ambalaj

Tape & Reel (TR)

Number Of Pcb Rows

1

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Ffc Fcb Thickness

0.30mm

Contact Finish

Gold

ECCN Kodu

EAR99

Montaj Tipi

Surface Mount, Right Angle

Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Voltage Rated Ac

50V

Flammability Rating

UL94 V-0

JESD-609 Kodu

e4

Plating Thickness

2μin

Nominal Gerilim

50V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Radyasyon Dayanımı

No

Locking Feature

Rotary Lock

Parça Durumu

Active

Reach Svhc

No SVHC

Total Number Of Contacts

20

Cable End Type

Tabbed

Reference Standard

UL

Terminal

Solder

Actuatorcolor

Black

Flat Flex Type

FFC, FPC

Akım Değeri

500mA

RoHS Durumu

RoHS Compliant

Contact Materials

Phosphor Bronze

Insulation Resistance

500MOhm

Orientation

Right Angle
