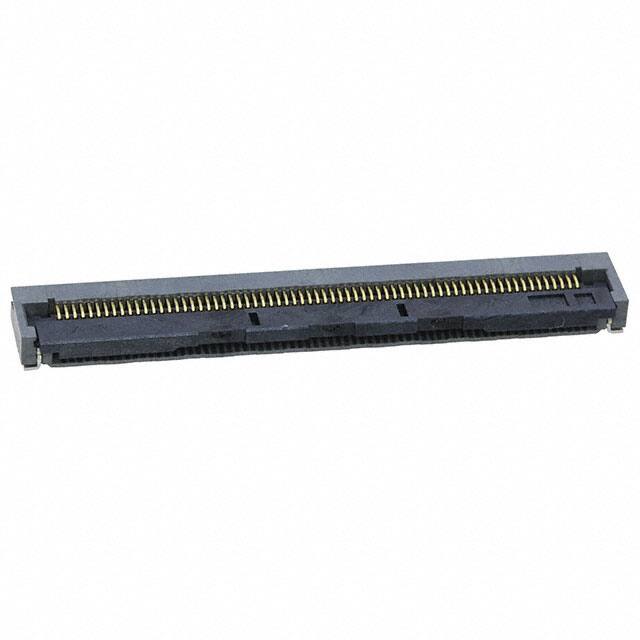

FH28D-68S-0.5SH(98)

Teknik Özellikler

Insulation Resistance

500MOhm

Contact Materials

Phosphor Bronze

Orientation

Right Angle

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm

Mil Conformance

NO

Connector Type

FFC/FPC CONNECTOR

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Pozisyon Sayısı

68

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-40°C~105°C

Wirecable Type

Flat Flex

Din Conformance

NO

Current Rating Amps

0.5A

Locking Feature

Rotary Lock

Parça Durumu

Active

Reach Svhc

Unknown

Total Number Of Contacts

68

Cable End Type

Tabbed

Terminal

Solder

Actuatorcolor

Black

Flat Flex Type

FFC, FPC

Akım Değeri

500mA

RoHS Durumu

RoHS Compliant

Filter Feature

NO

Mating Cycles

20

Mixed Contacts

NO

Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Nominal Gerilim

50V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Iec Conformance

NO

Housing Color

Gray

Material Flammability Rating

UL94 V-0

Montaj

Surface Mount

Seri

FH28

Height Above Board

0.100 2.54mm

Ambalaj

Tape & Reel (TR)

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free
