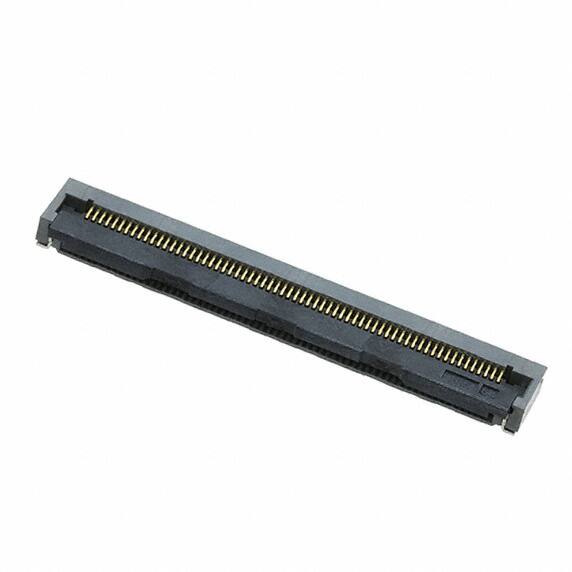

FH28D-64S-0.5SH(05)

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e4

Flammability Rating

UL94 V-0

Iec Conformance

NO

Radyasyon Dayanımı

No

Depth

6.5mm

Ambalaj

Tape & Reel (TR)

Height Above Board

0.100 2.54mm

Seri

FH28

Max Voltage Rating Ac

50V

Max Current Rating

500mA

Montaj

Surface Mount

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Housing Color

Gray

Contact Resistance

50mOhm

Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Additional Feature

ZIF

Montaj Tipi

Surface Mount, Right Angle

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Contact Finish

Gold

Ffc Fcb Thickness

0.30mm

Ul Flammability Code

94V-0

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Number Of Pcb Rows

1

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Connector Type

FFC/FPC CONNECTOR

Mil Conformance

NO

Kurşunsuz

Lead Free

Orientation

Right Angle

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm

Insulation Resistance

500MOhm

Contact Materials

Phosphor Bronze

Current Rating Amps

0.5A

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR
