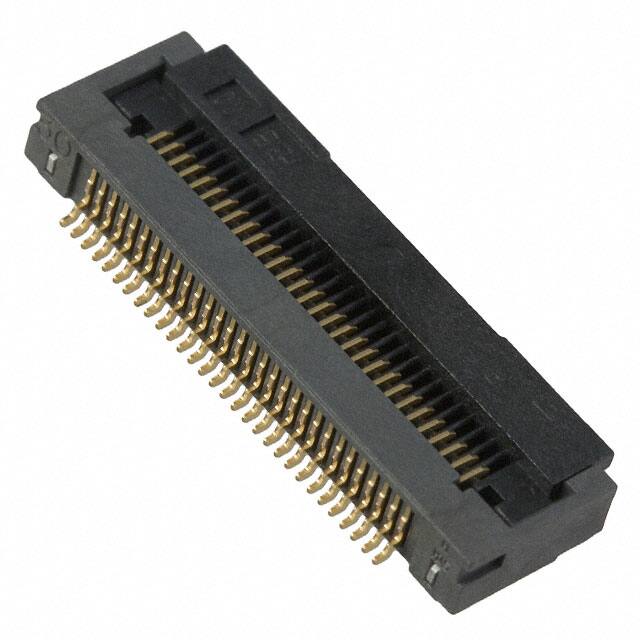

FH28D-30S-0.5SH(05)

Teknik Özellikler

Locking Feature

Rotary Lock

Parça Durumu

Active

Total Number Of Contacts

30

Cable End Type

Tabbed

Reference Standard

UL

Terminal

Solder

Flat Flex Type

FFC, FPC

Actuatorcolor

Black

RoHS Durumu

RoHS Compliant

Contact Gender

FEMALE

Akım Değeri

500mA

Mating Cycles

20

Mixed Contacts

NO

Filter Feature

NO

Orientation

Right Angle

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze

Insulation Resistance

500MOhm

Mil Conformance

NO

Kurşunsuz

Lead Free

Connector Type

FFC/FPC CONNECTOR

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Fabrika Tedarik Süresi

12 Weeks

Pozisyon Sayısı

30

Çalışma Sıcaklığı

-40°C~105°C

Pcb Contact Pattern

RECTANGULAR

Current Rating Amps

0.5A

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Housing Color

Gray

Montaj

Surface Mount

Seri

FH28

Height Above Board

0.100 2.54mm

Ambalaj

Tape & Reel (TR)

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Number Of Pcb Rows

1

Ul Flammability Code

94V-0

Özellikler

Solder Retention, Zero Insertion Force (ZIF)
