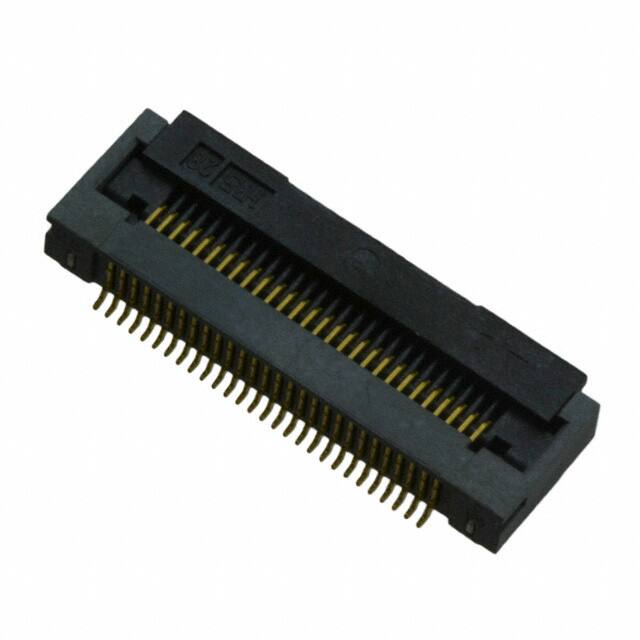

FH28D-28S-0.5SH(05)

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

28

Çalışma Sıcaklığı

-40°C~105°C

Pcb Contact Pattern

RECTANGULAR

Current Rating Amps

0.5A

Din Conformance

NO

Pitch

0.020 0.50mm

Option

GENERAL PURPOSE

Orientation

Right Angle

Insulation Resistance

500MOhm

Contact Materials

Phosphor Bronze

Kurşunsuz

Lead Free

Mil Conformance

NO

Connector Type

FFC/FPC CONNECTOR

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Reference Standard

UL

Terminal

Solder

Flat Flex Type

FFC, FPC

Actuatorcolor

Black

RoHS Durumu

RoHS Compliant

Akım Değeri

500mA

Mating Cycles

20

Mixed Contacts

NO

Filter Feature

NO

Locking Feature

Rotary Lock

Parça Durumu

Active

Reach Svhc

No SVHC

Total Number Of Contacts

28

Cable End Type

Tabbed

Gender

Receptacle

Iec Conformance

NO

JESD-609 Kodu

e4

Flammability Rating

UL94 V-0

Nominal Gerilim

50V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Number Of Pcb Rows

1

Ul Flammability Code

94V-0

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Ffc Fcb Thickness

0.30mm
