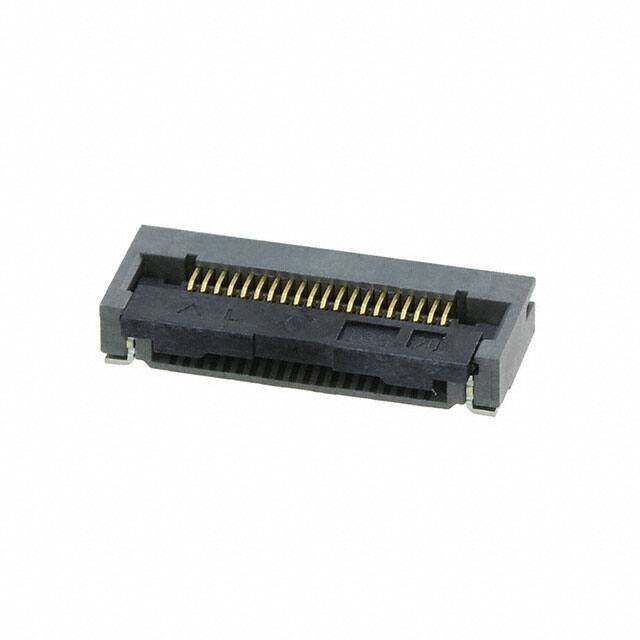

FH28D-20S-0.5SH(05)

Teknik Özellikler

Pozisyon Sayısı

20

Fabrika Tedarik Süresi

11 Weeks

Çalışma Sıcaklığı

-40°C~105°C

Pcb Contact Pattern

RECTANGULAR

Current Rating Amps

0.5A

Din Conformance

NO

Wirecable Type

Flat Flex

Kurşunsuz

Lead Free

Mil Conformance

NO

Orientation

Right Angle

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze

Insulation Resistance

500MOhm

Connector Type

FFC/FPC CONNECTOR

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Terminal

Solder

Uzunluk

14.9mm

Reference Standard

UL

Mixed Contacts

NO

Filter Feature

NO

Flat Flex Type

FFC, FPC

Actuatorcolor

Black

RoHS Durumu

RoHS Compliant

Contact Gender

FEMALE

Akım Değeri

500mA

Parça Durumu

Active

Locking Feature

Rotary Lock

Cable End Type

Tabbed

Total Number Of Contacts

20

Iec Conformance

NO

Mounting Option1

LOCKING

Depth

7.2mm

JESD-609 Kodu

e4

Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ul Flammability Code

94V-0

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Ffc Fcb Thickness

0.30mm

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free
