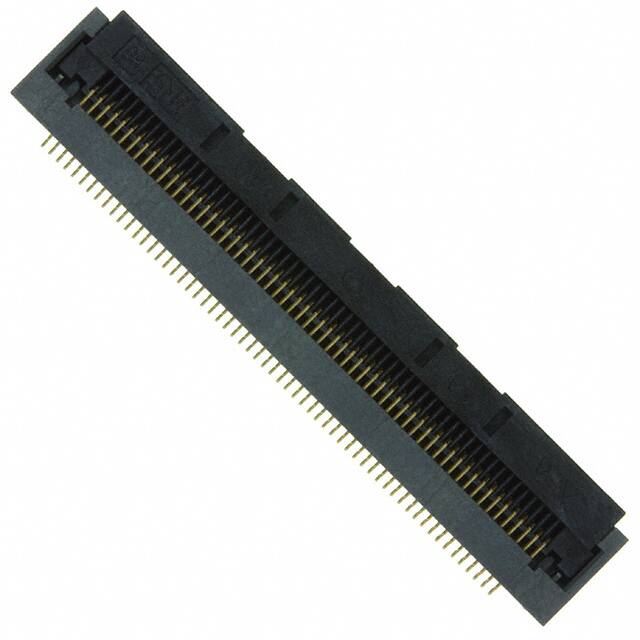

FH28-60S-0.5SH(05)

Teknik Özellikler

Insertion Forcemax

ZIF N

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Contact Resistance

50mOhm

Yükseklik

2.55mm

Additional Feature

ZIF

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Number Of Poles

60

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Number Of Pcb Rows

1

Ffc Fcb Thickness

0.30mm

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Ul Flammability Code

94V-0

Max Voltage Rating Ac

50V

Max Current Rating

500mA

Montaj

Surface Mount

Ambalaj

Tape & Reel (TR)

Height Above Board

0.100 2.54mm

Seri

FH28

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Housing Color

Gray

Depth

6.5mm

Iec Conformance

NO

Radyasyon Dayanımı

No

Gender

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e4

Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Akım Değeri

500mA

Flat Flex Type

FFC, FPC

Actuatorcolor

Black

Mixed Contacts

NO

Mating Cycles

20

Filter Feature

NO

Reference Standard

UL
