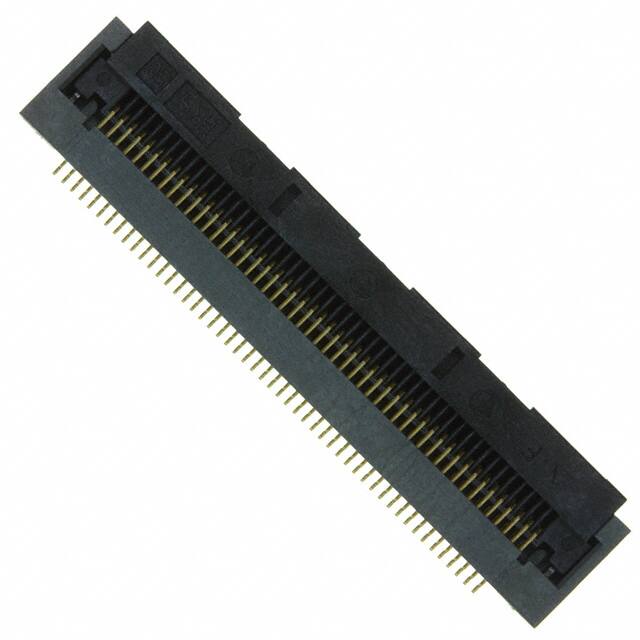

FH28-50S-0.5SH(05)

Teknik Özellikler

Locking Feature

Rotary Lock

Parça Durumu

Active

Reach Svhc

Unknown

Total Number Of Contacts

50

Cable End Type

Tabbed

Terminal

Solder

Actuatorcolor

Black

Flat Flex Type

FFC, FPC

Akım Değeri

500mA

RoHS Durumu

RoHS Compliant

Filter Feature

NO

Mixed Contacts

NO

Mating Cycles

20

Contact Materials

Phosphor Bronze

Orientation

Right Angle

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm

Mil Conformance

NO

Kurşunsuz

Lead Free

Connector Type

FFC/FPC CONNECTOR

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

50

Çalışma Sıcaklığı

-40°C~105°C

Din Conformance

NO

Lead Pitch

500μm

Current Rating Amps

0.5A

Housing Color

Gray

Material Flammability Rating

UL94 V-0

Montaj

Surface Mount

Height Above Board

0.100 2.54mm

Seri

FH28

Ambalaj

Tape & Reel (TR)

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Ul Flammability Code

94V-0

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Ffc Fcb Thickness

0.30mm

Contact Finish

Gold

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes
