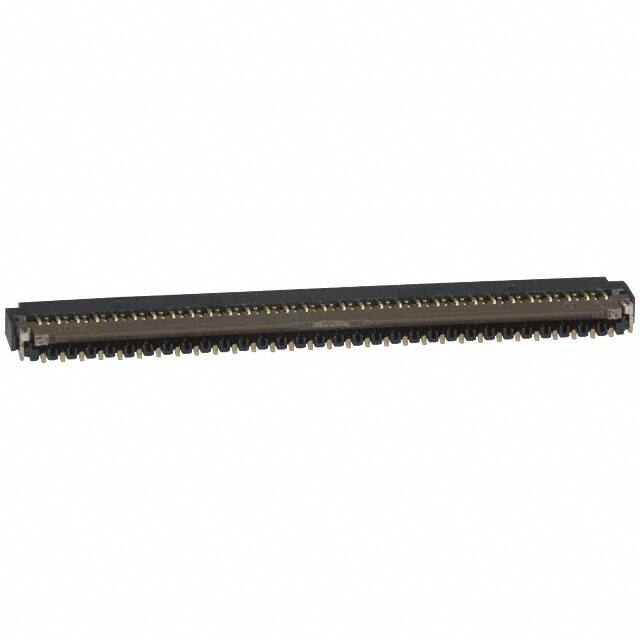

FH26W-61S-0.3SHW(60)

Teknik Özellikler

Height Above Board

0.039 1.00mm

Terminal

Solder

Locking Feature

Flip Lock

Mil Conformance

NO

Akım Değeri

200mA

Option

GENERAL PURPOSE

Contact Finish

Gold

Contact Materials

Phosphor Bronze

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Brown

Kurşunsuz Kodu

yes

Özellikler

Zero Insertion Force (ZIF)

Mating Cycles

10

Flammability Rating

UL94 HB

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount

Ffc Fcb Thickness

0.20mm

Cable End Type

Tapered

Sıra Sayısı

1

Actuator Material

Polyamide (PA), Nylon

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.2A

Nominal Gerilim

30V

Ul Flammability Code

94-HB, 94V-0

Filter Feature

NO

Parça Durumu

Active

Montaj Tipi

Surface Mount, Right Angle

Flat Flex Type

FPC

Pozisyon Sayısı

61

Seri

FH26

Total Number Of Contacts

61

Din Conformance

NO

Pitch

0.012 0.30mm

Housing Color

Black

Material Flammability Rating

UL94 HB
